Technical Specification

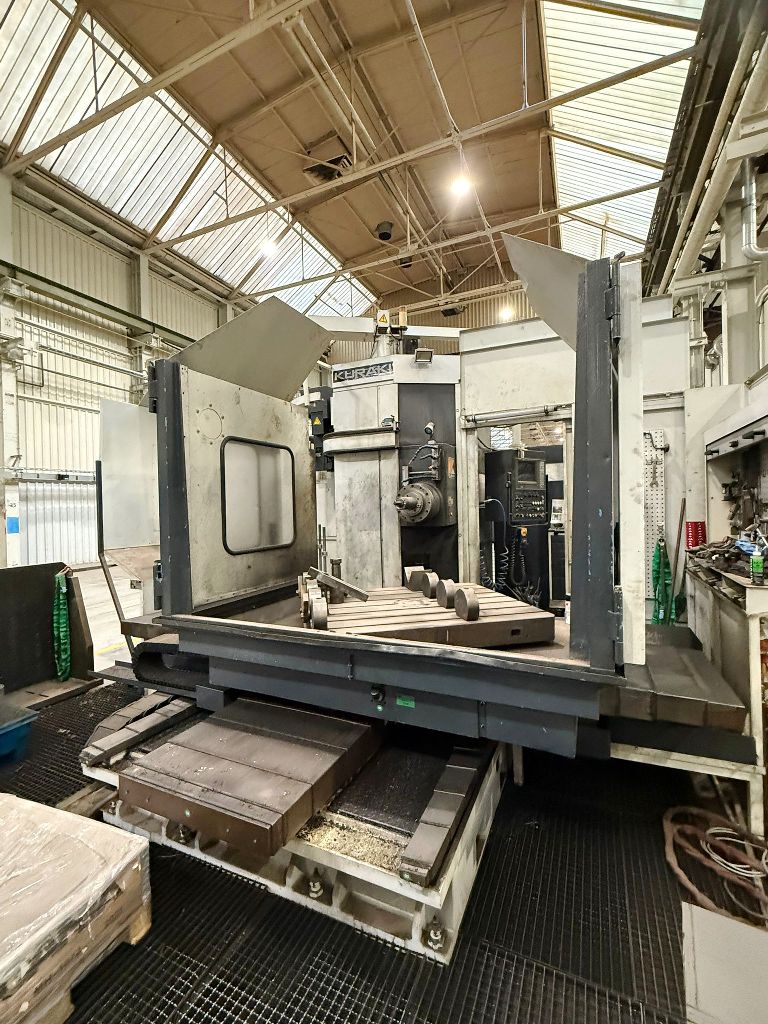

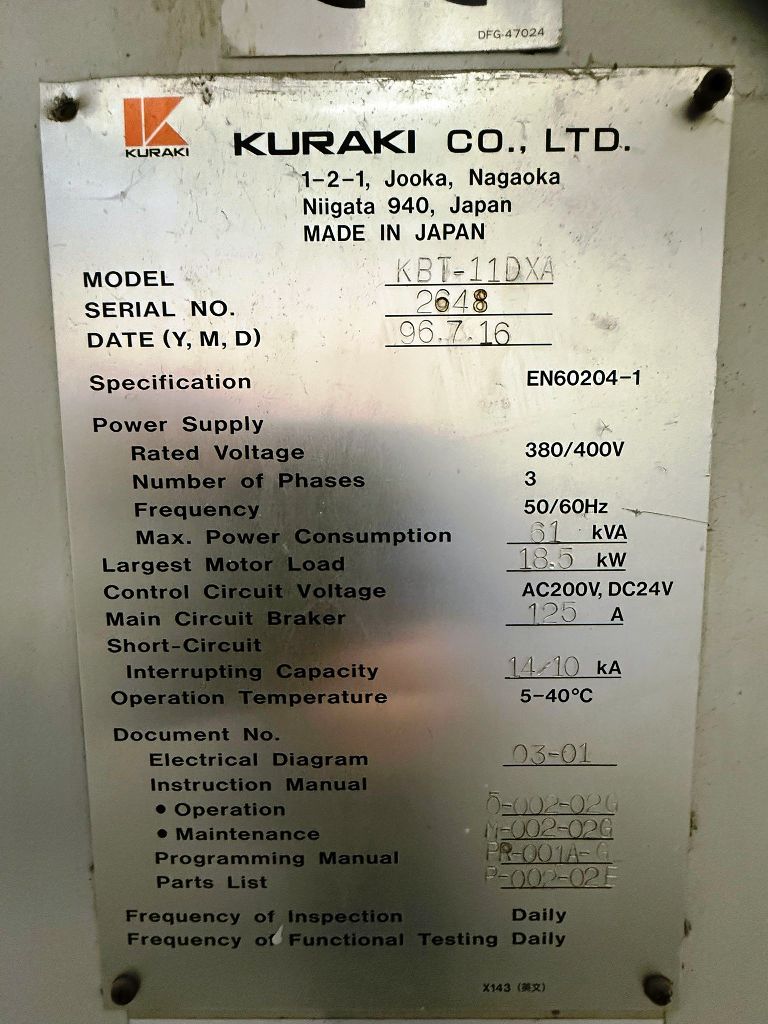

- Make Kuraki
- Model – KBT 11DX
- CNC Control – Fanuc 15M
- Yom – 1996
- Made in Japan
- Technical Details
- spindle diameter – 110 mm
- x-travel – 1700 mm
- y-travel – 1250 mm
- Z-travel – 1150 mm
- W-travel (spindle quill) – 650 mm
- Table surface area – 1200 x 1400 mm
- Table load capacity – 5000 kg
- Table Index – 0,001 degree
- Table Index in auto program – 90 degree
- Main Spindle motor – 18,5/15 kW AC
- Rapid X/Y/Z/W – 12000 & 6000 mm/min
- Feed X/Y/Z/W – 4000 mm/min
- Table rotating speed – 1rpm
- spindle cone – BT 50
- Spindle speed – 2500 rpm
- Servo motors – AC Fanuc
- Approximate total weight – 21000 kg
- The Machine is in Excellent condition &
- Very well maintained.
