Technical Specification

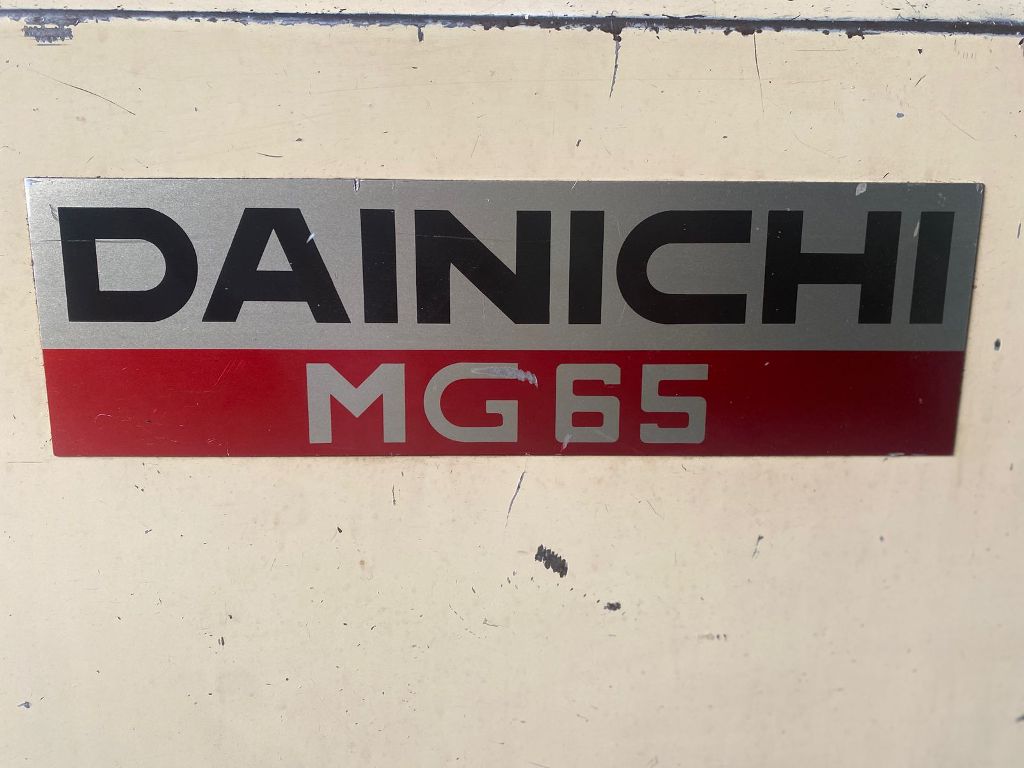

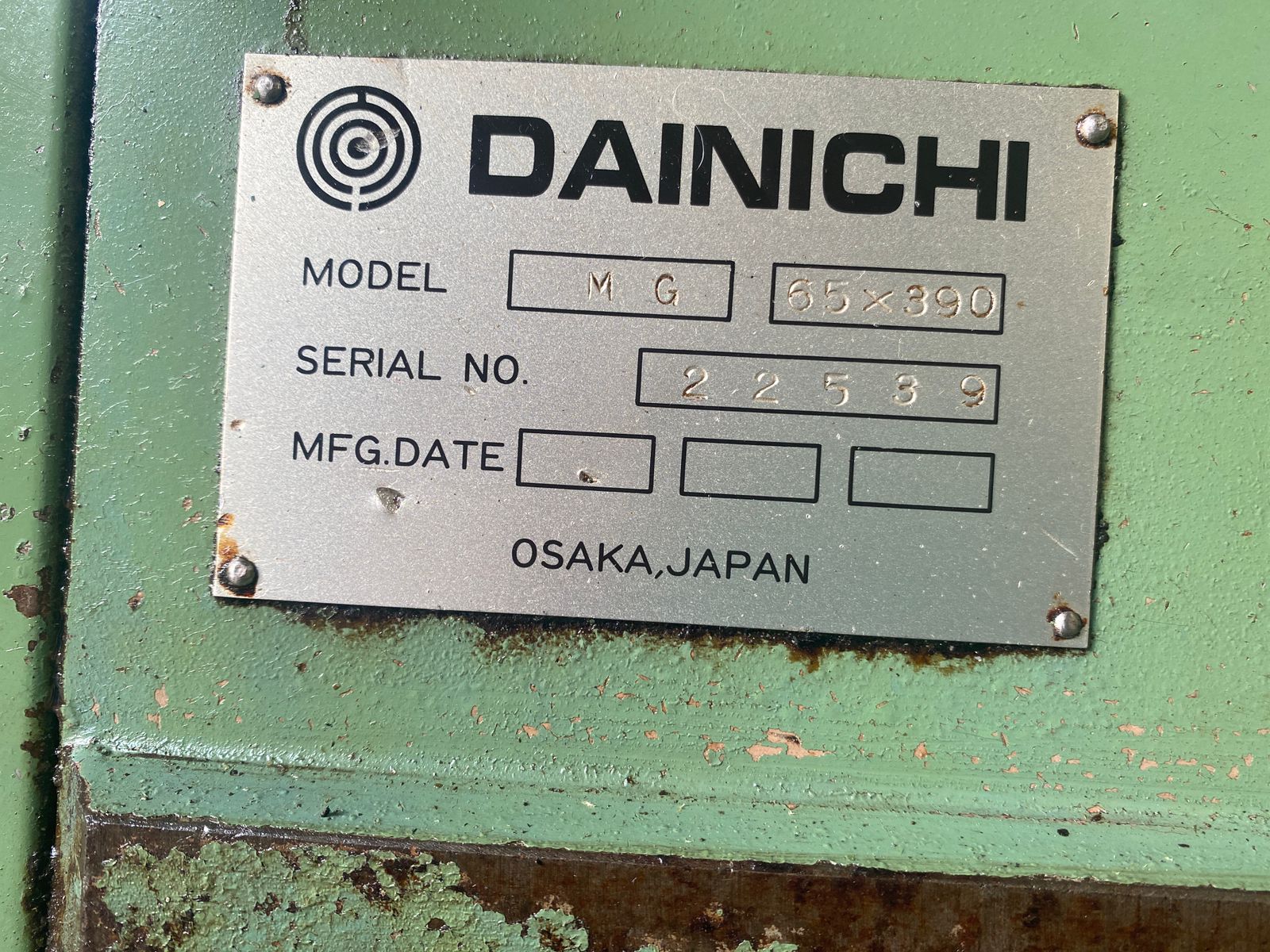

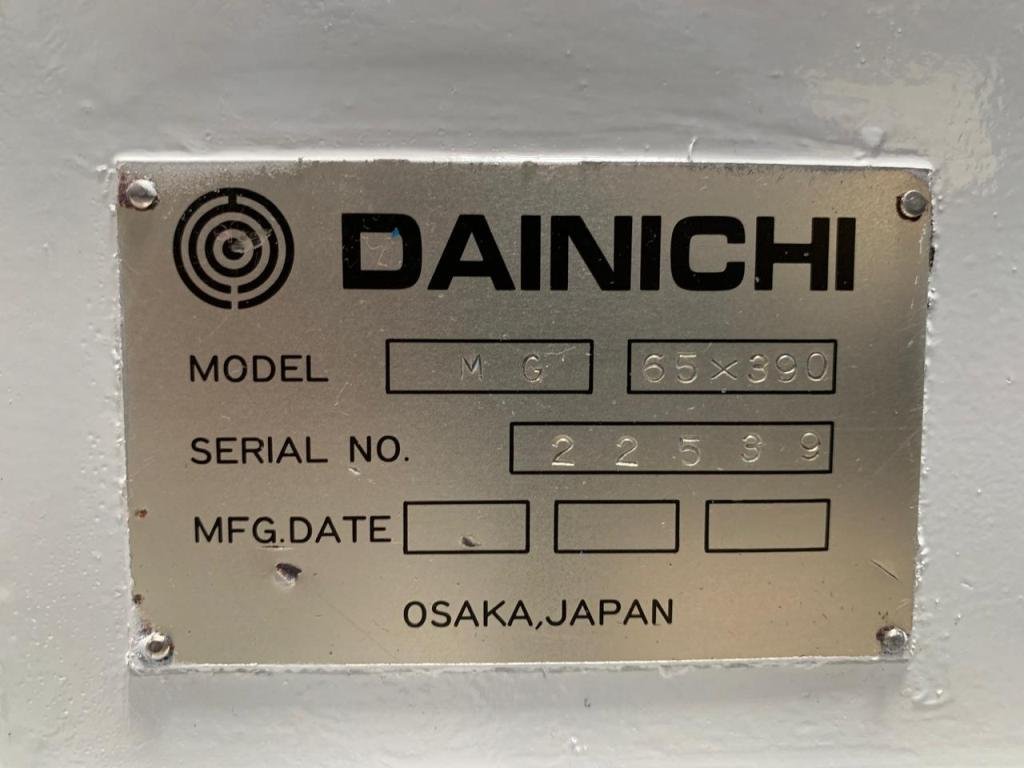

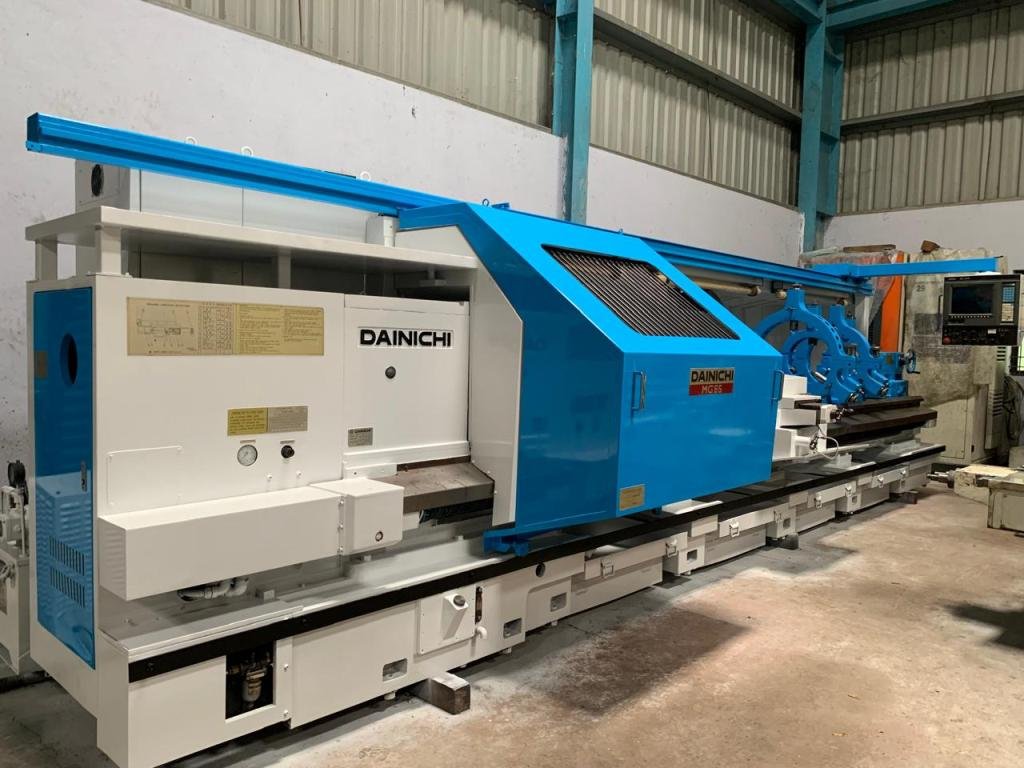

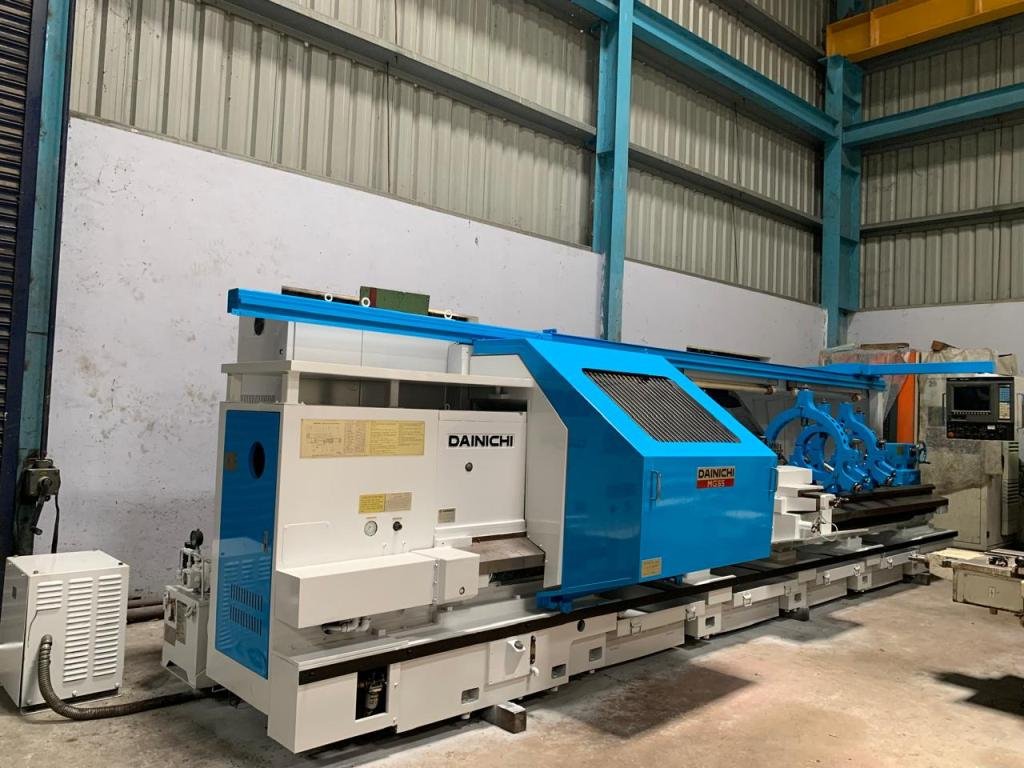

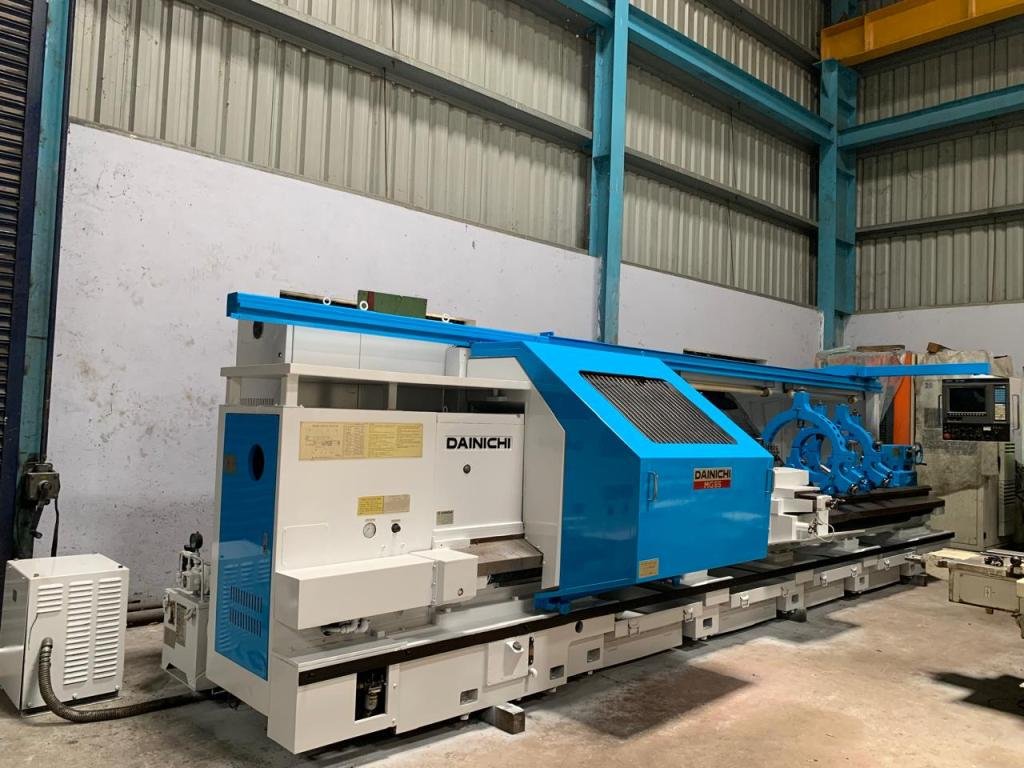

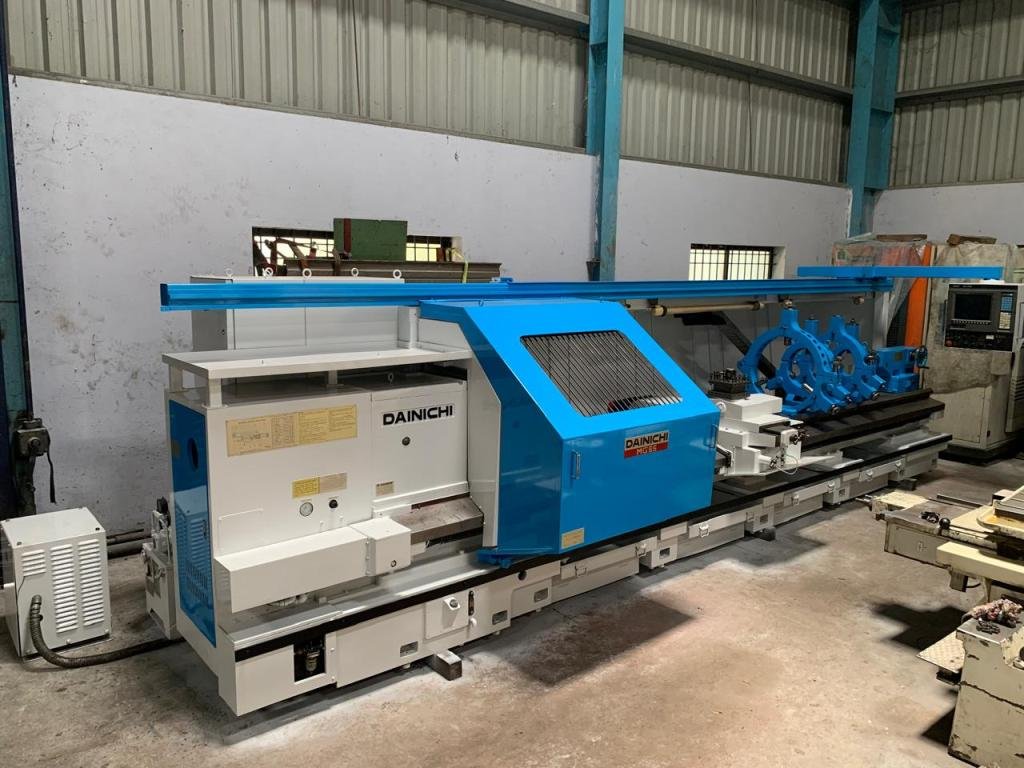

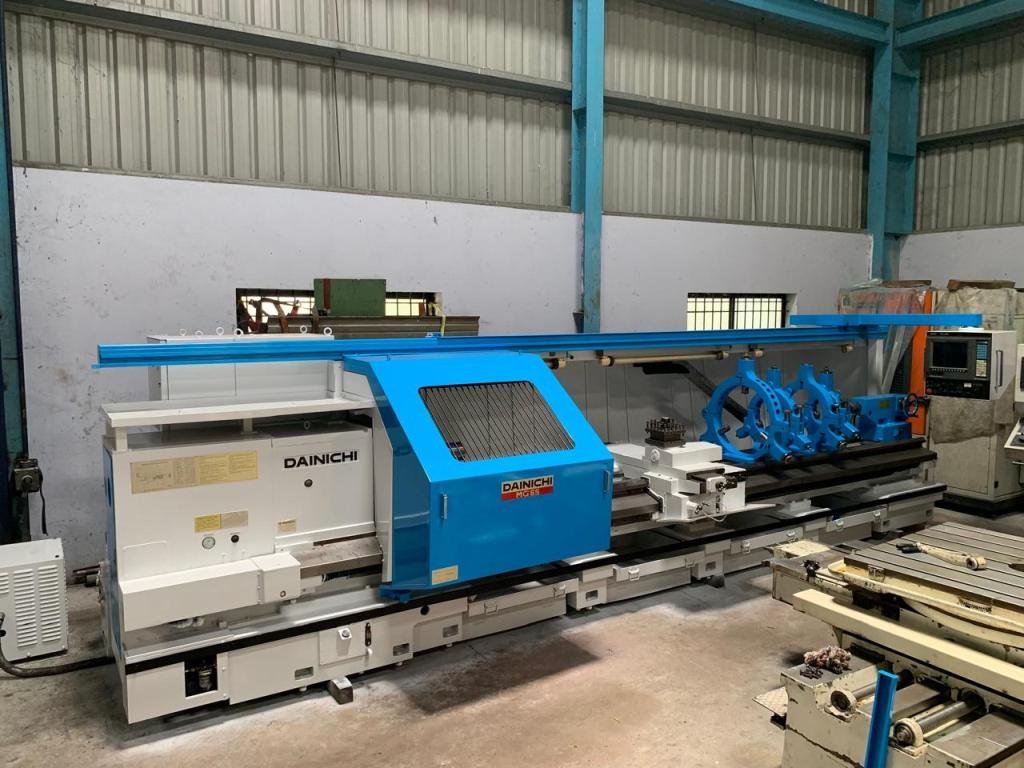

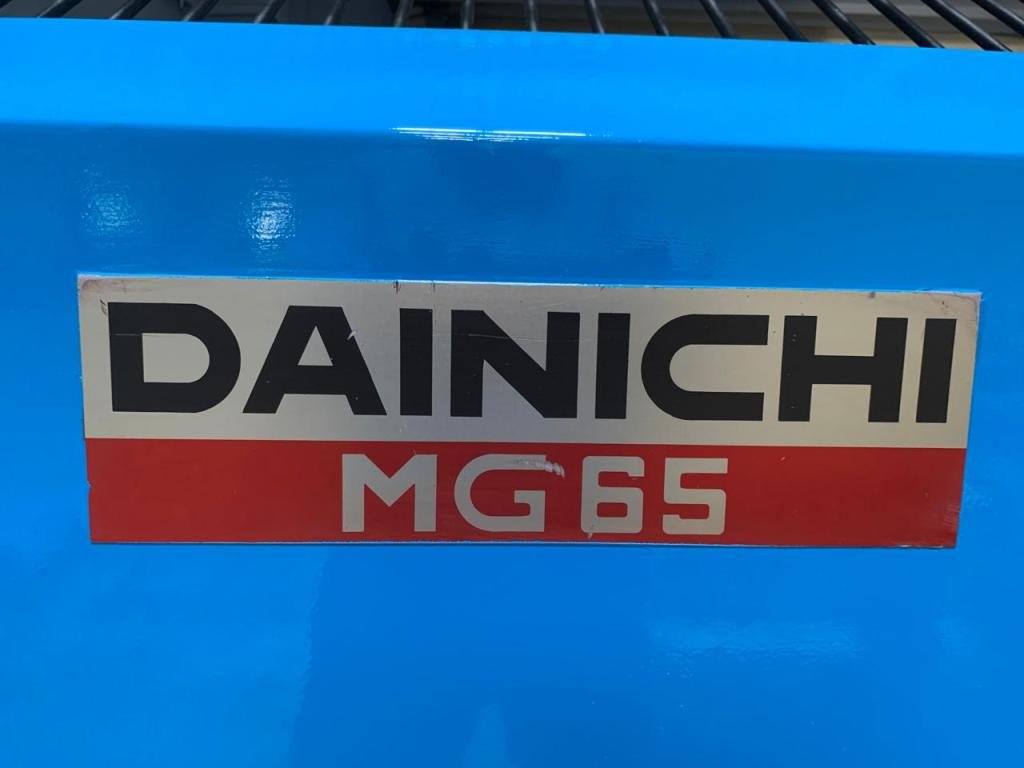

- Make – DAINICHI
- Model – MG 65/4000
- Country – Japan

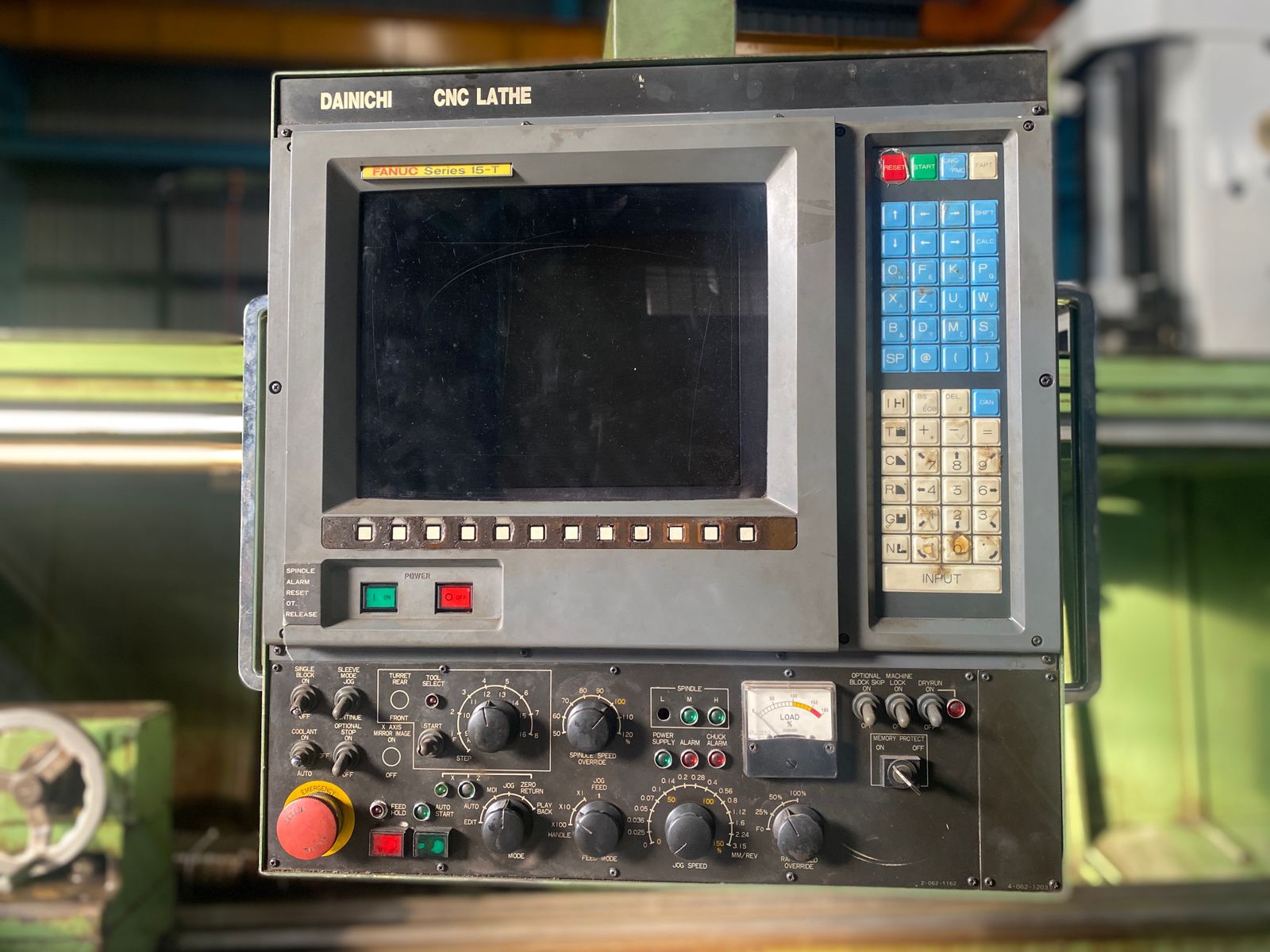

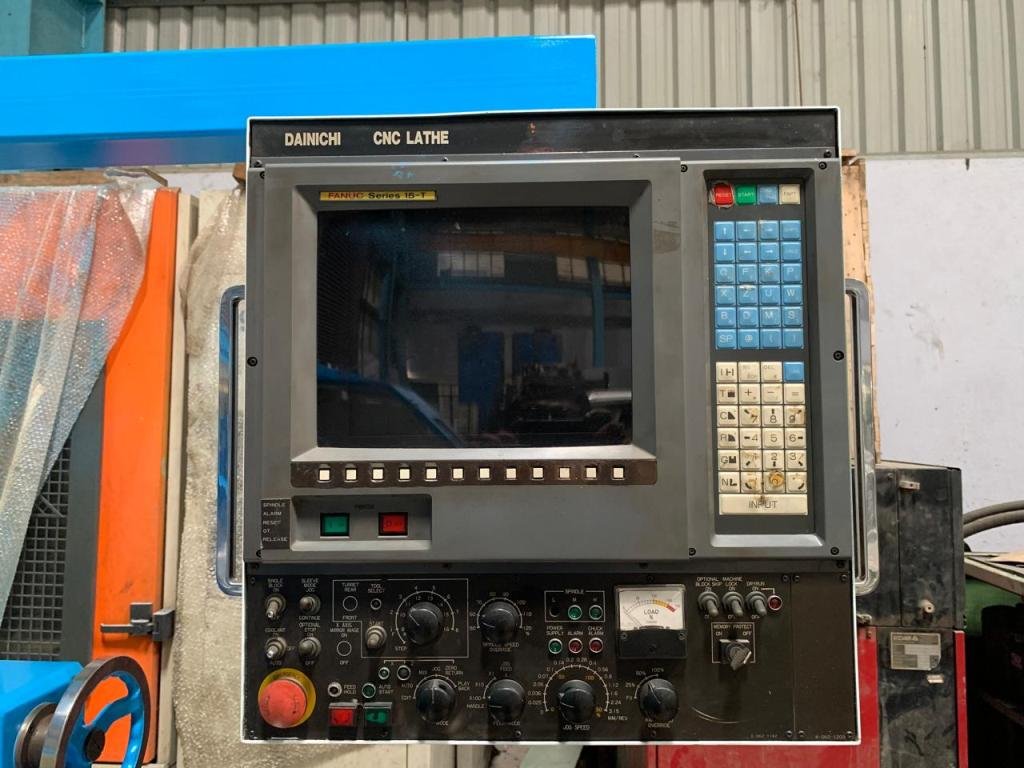

- Control – Fanuc 15-T
- Max. Turning Diameter – 400 mm
- Max. Turning Length – 2500 mm
- Spindle Bore – 85 mm
- X-Axis Travel – 320 mm
- Z-Axis Travel – 4200 mm
- Swing Over Bed – 700 mm

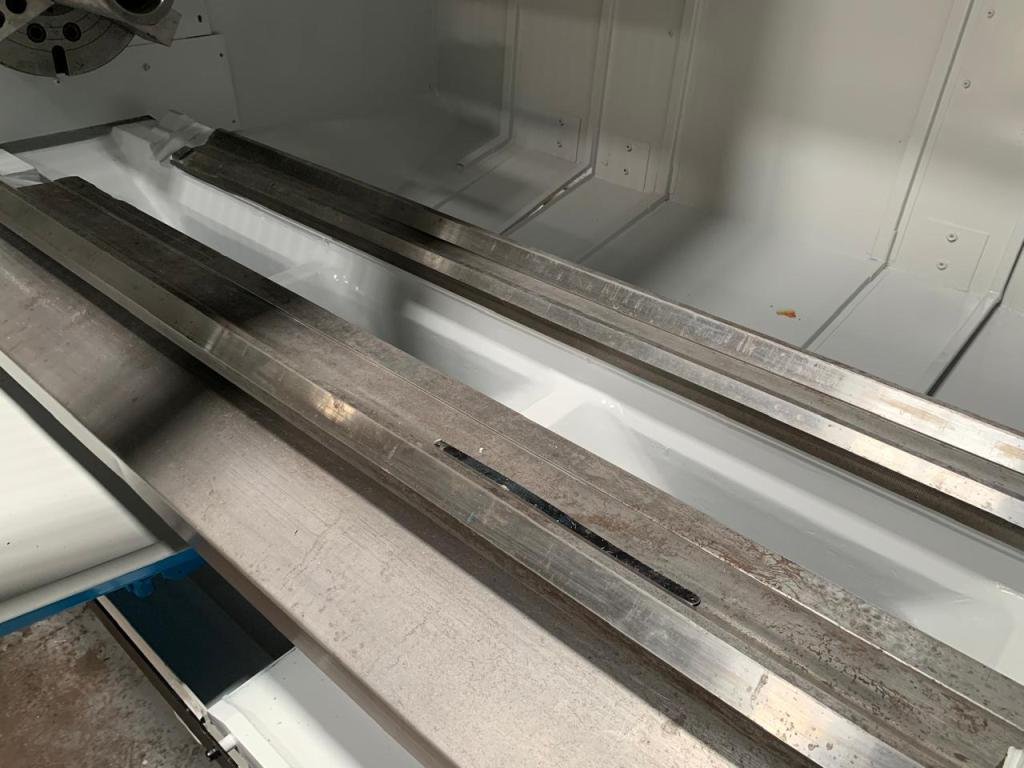

- Bed Width – 480 mm
- Spindle Speed – 3–1800 RPM
- Spindle Motor Power – 11 / 15 kW
- Max. Spindle Torque – 1060 Nm

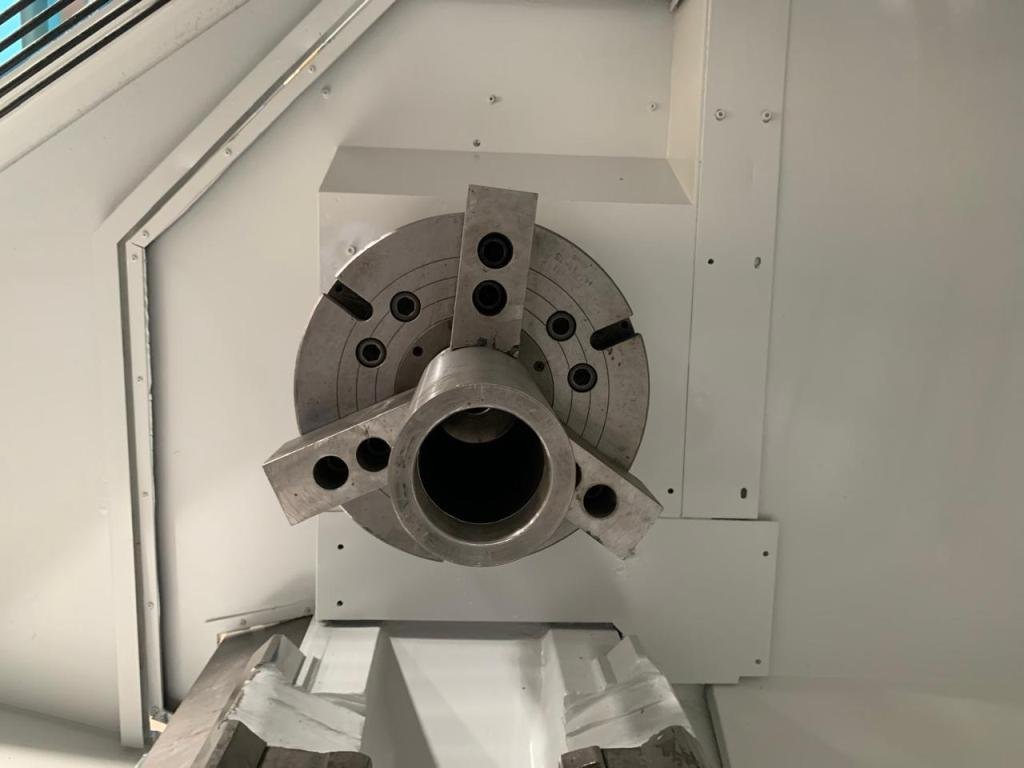

- Spindle Nose – JIS A-11

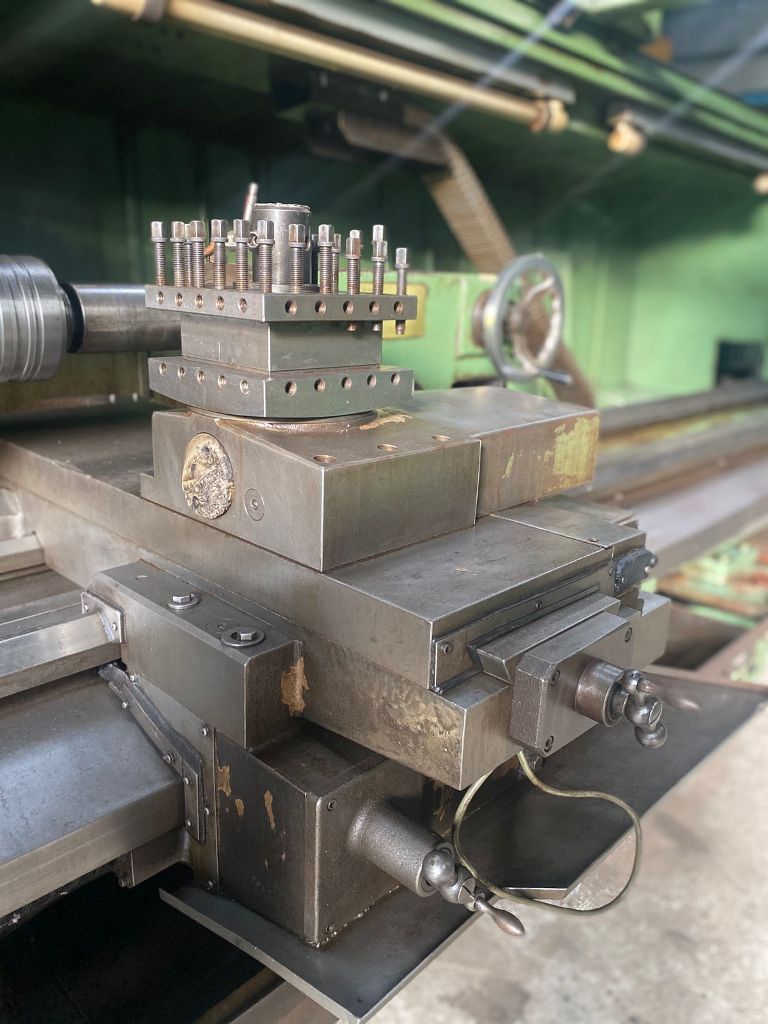

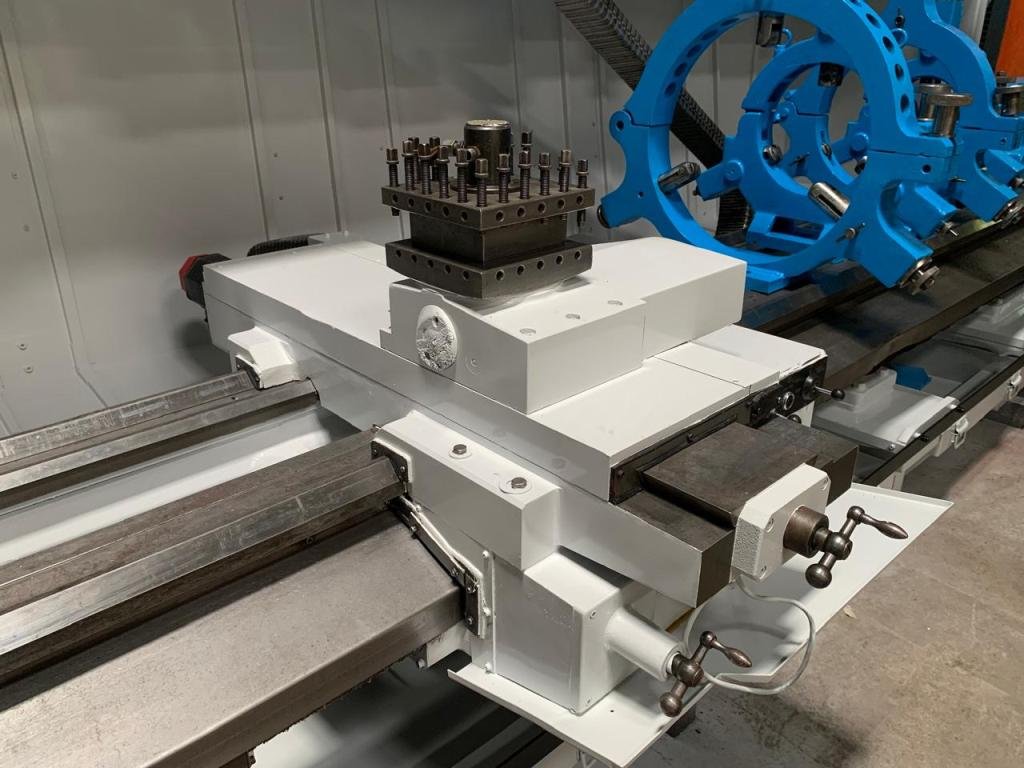

- Turret – 8 Stations
- Tool Shank Size – 25 × 25 mm

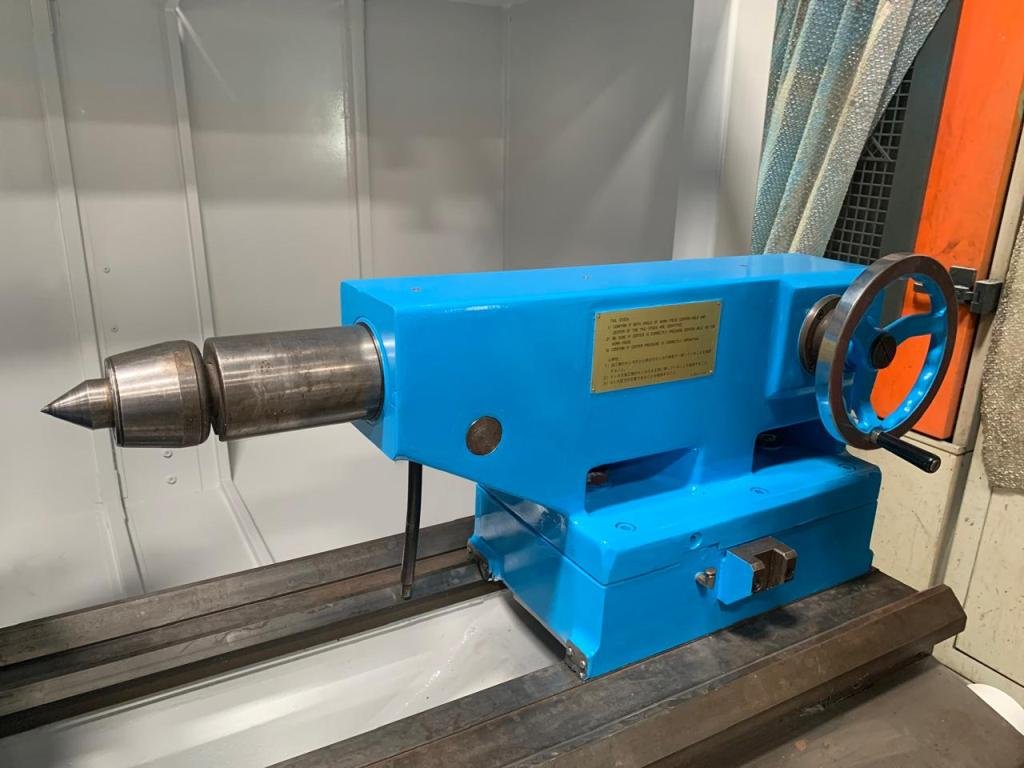

- Tailstock Taper – MT5
- Tailstock Quill Diameter – 90 mm
- Max. Workpiece Weight (Between Centers) – 2000 kg
- Rapid Traverse – 6000 mm/min
- Feed Rate – 0.0001–500 mm/min
- Total Power Requirement – 33 kVA

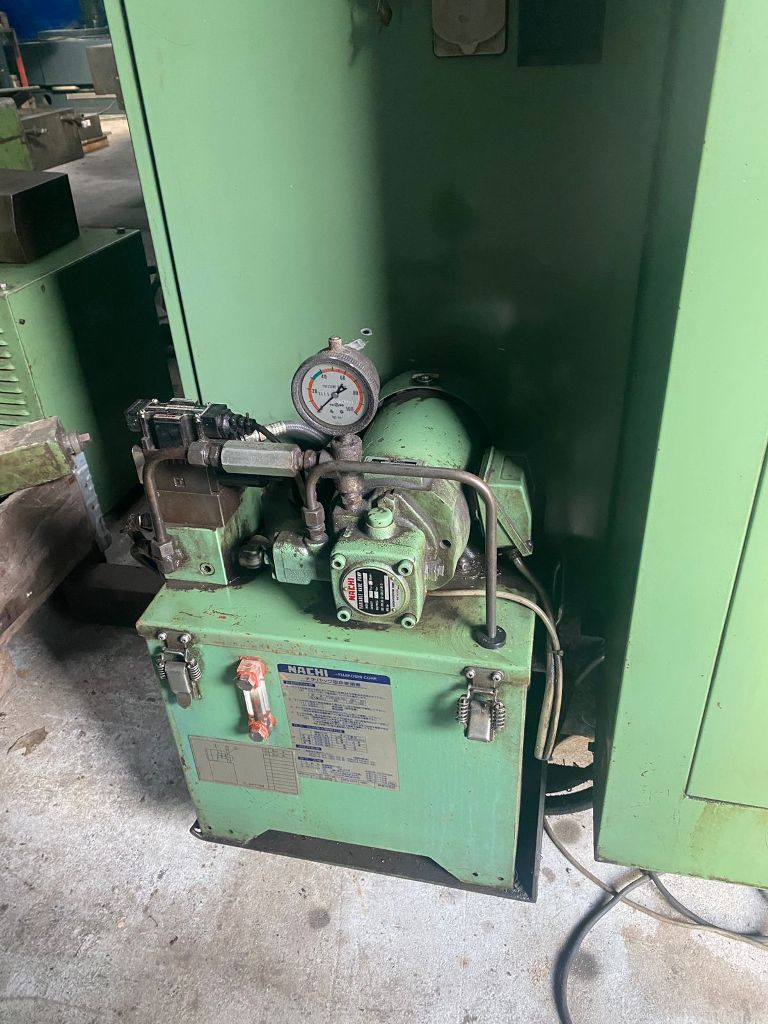

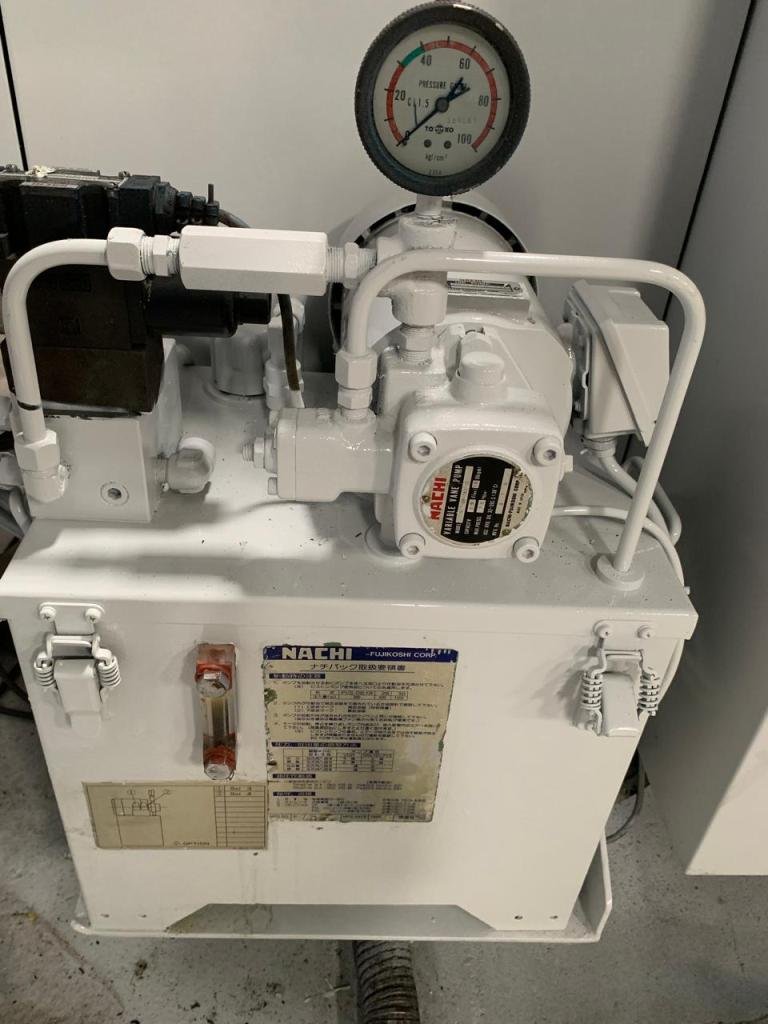

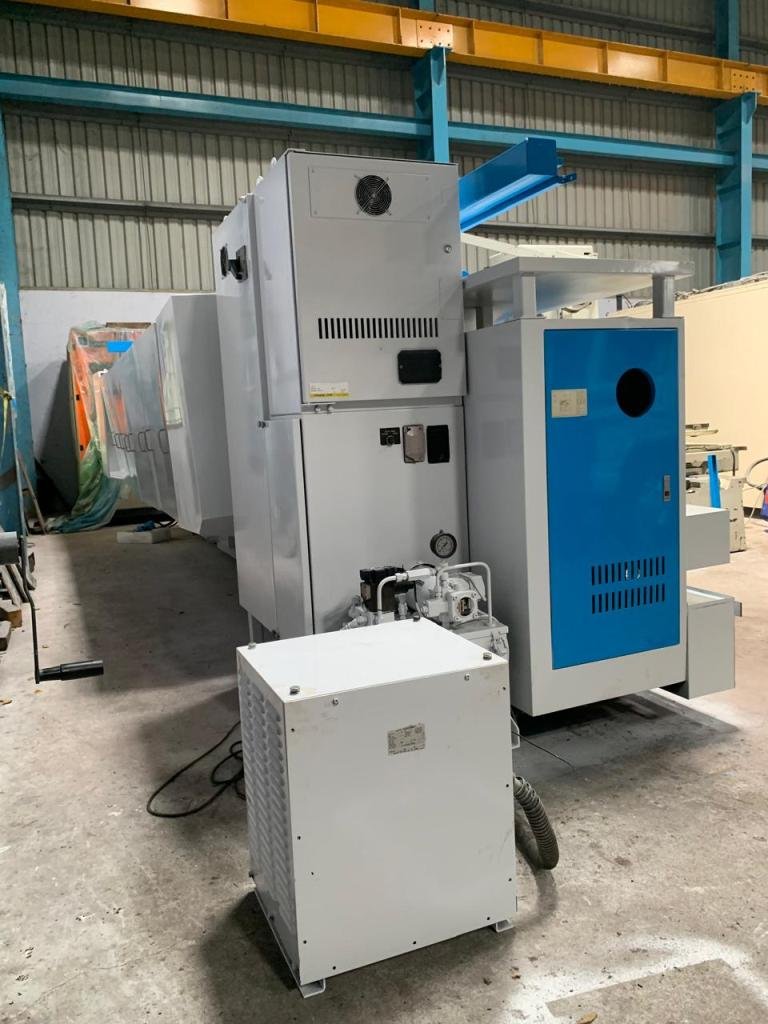

- Accessories – Coolant System, Hydraulic System, Tailstock,

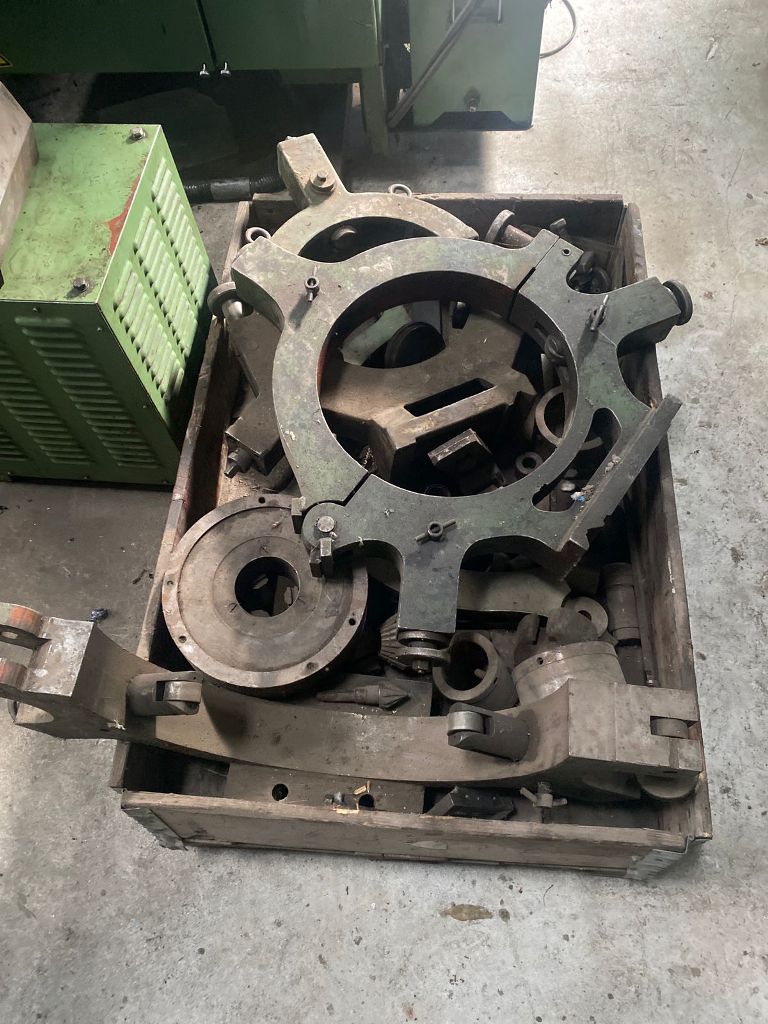

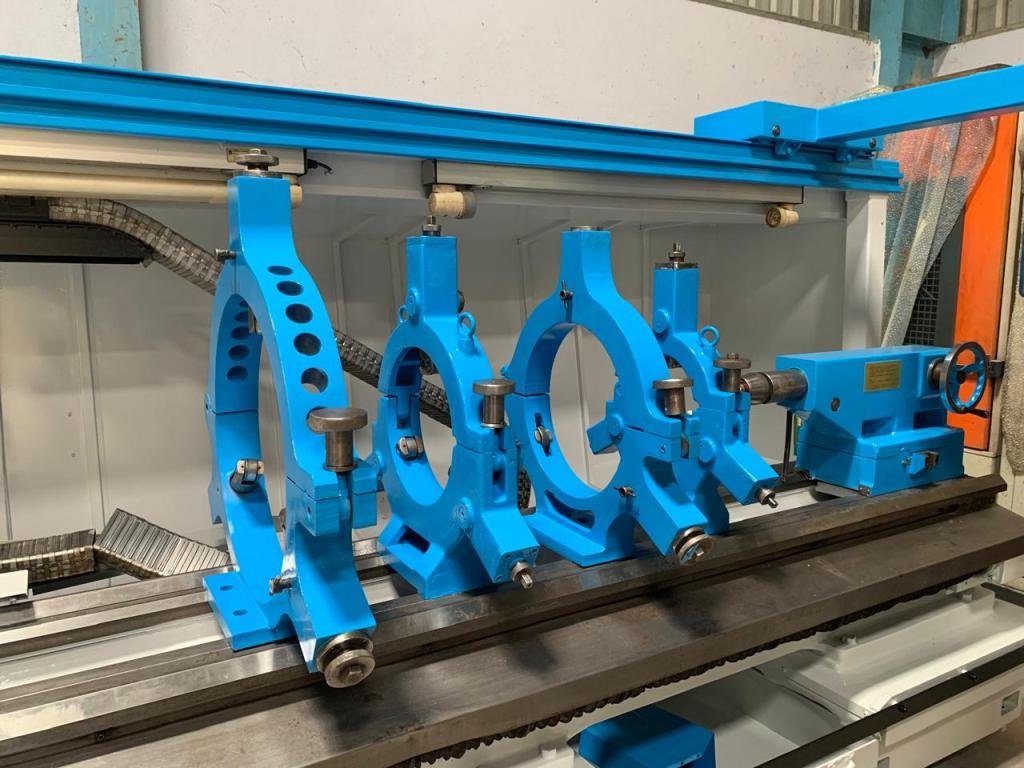

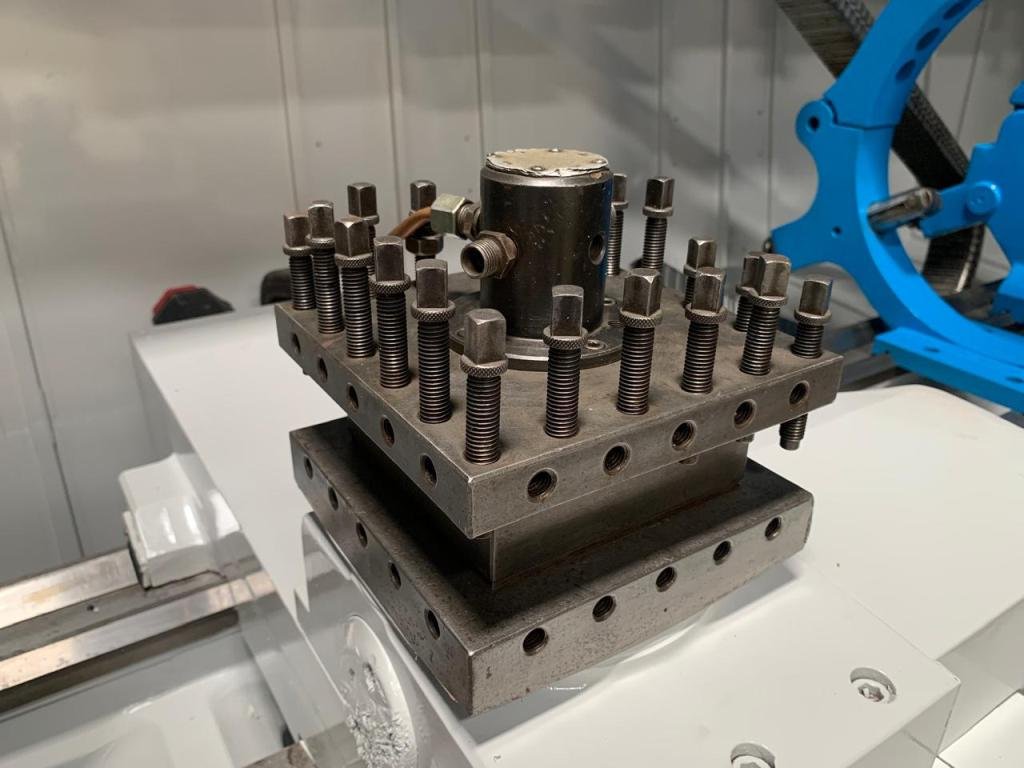

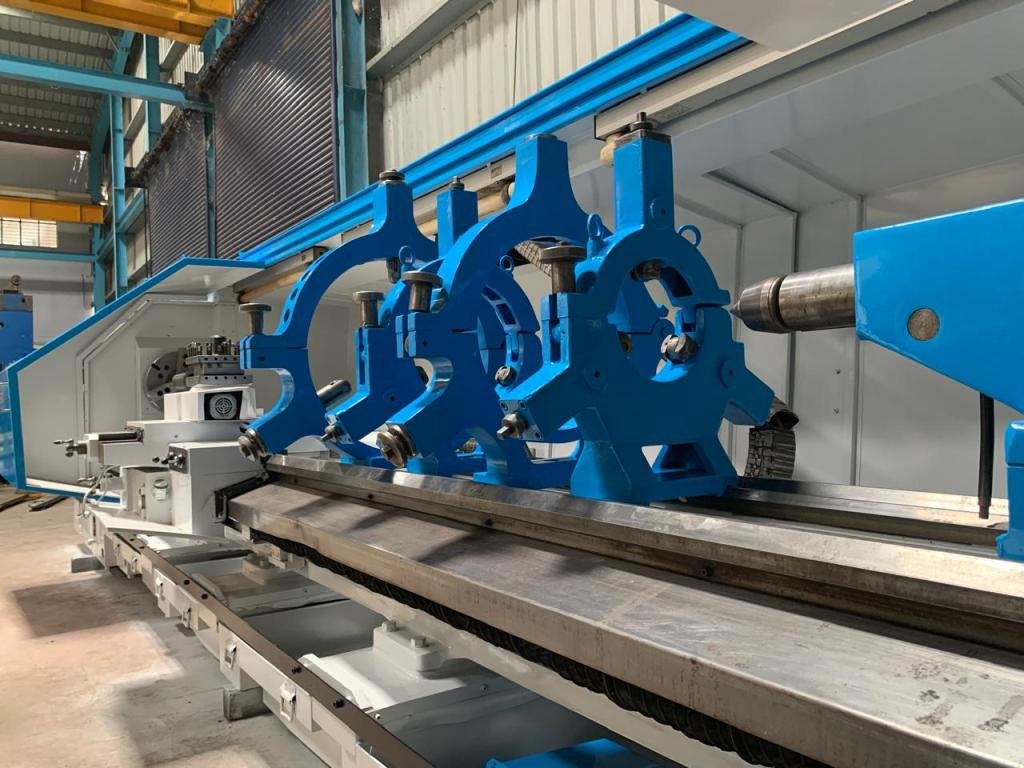

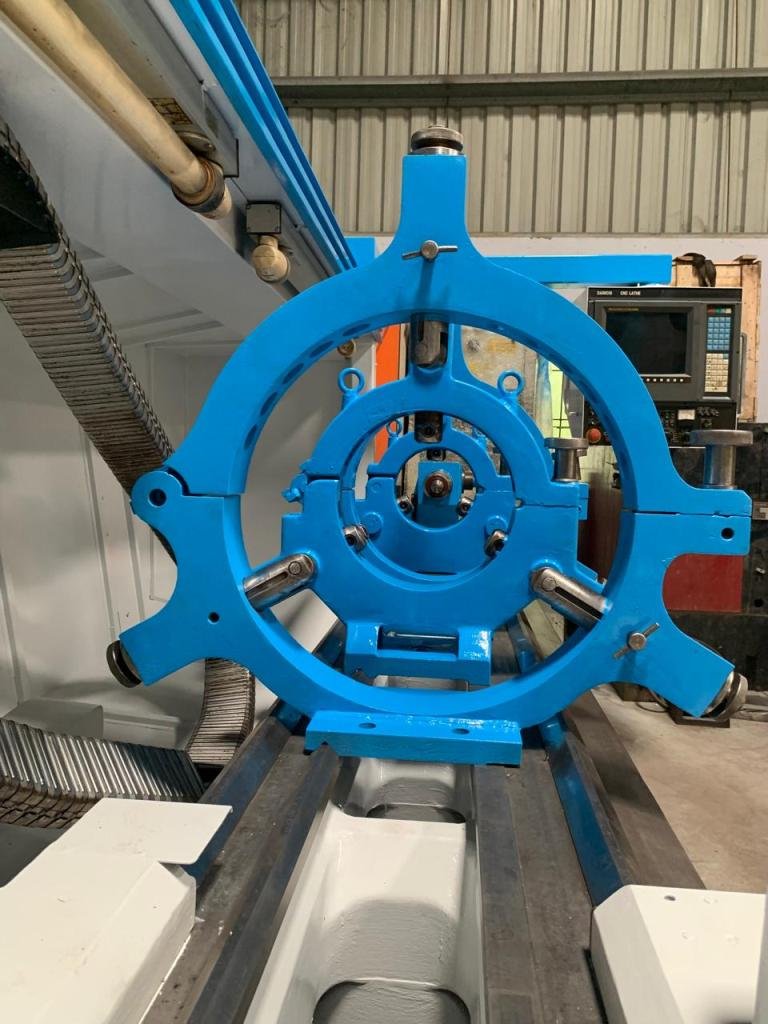

- 4-Position Turret, 4 Rotating Steady Rests
