Technical Specification

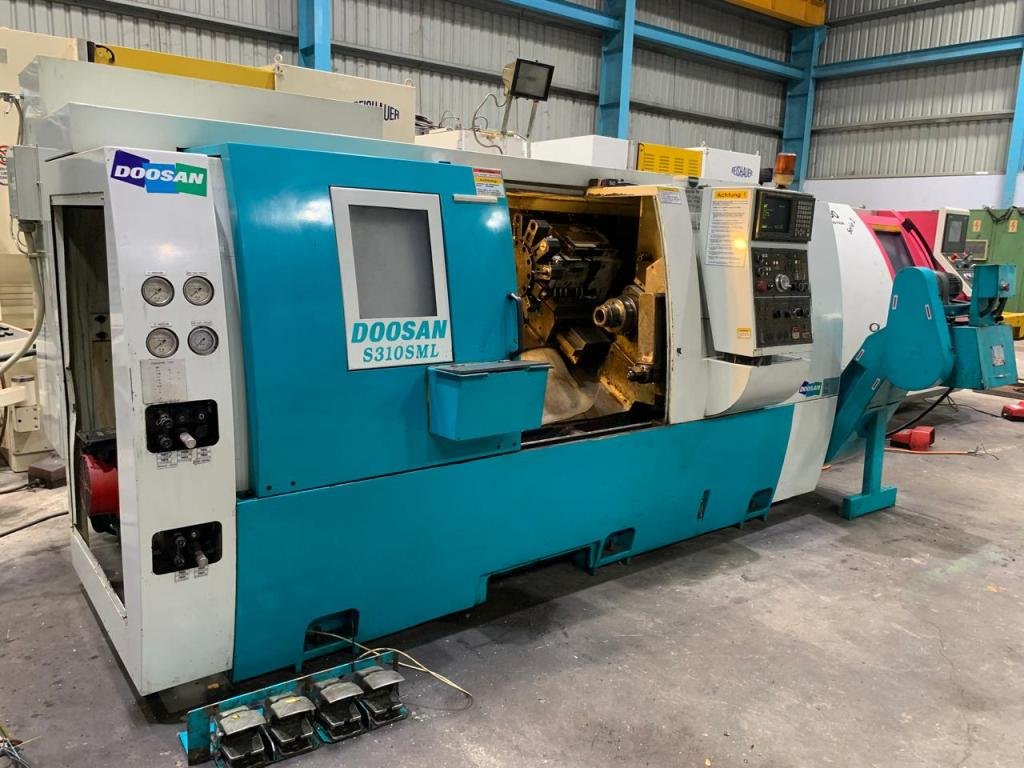

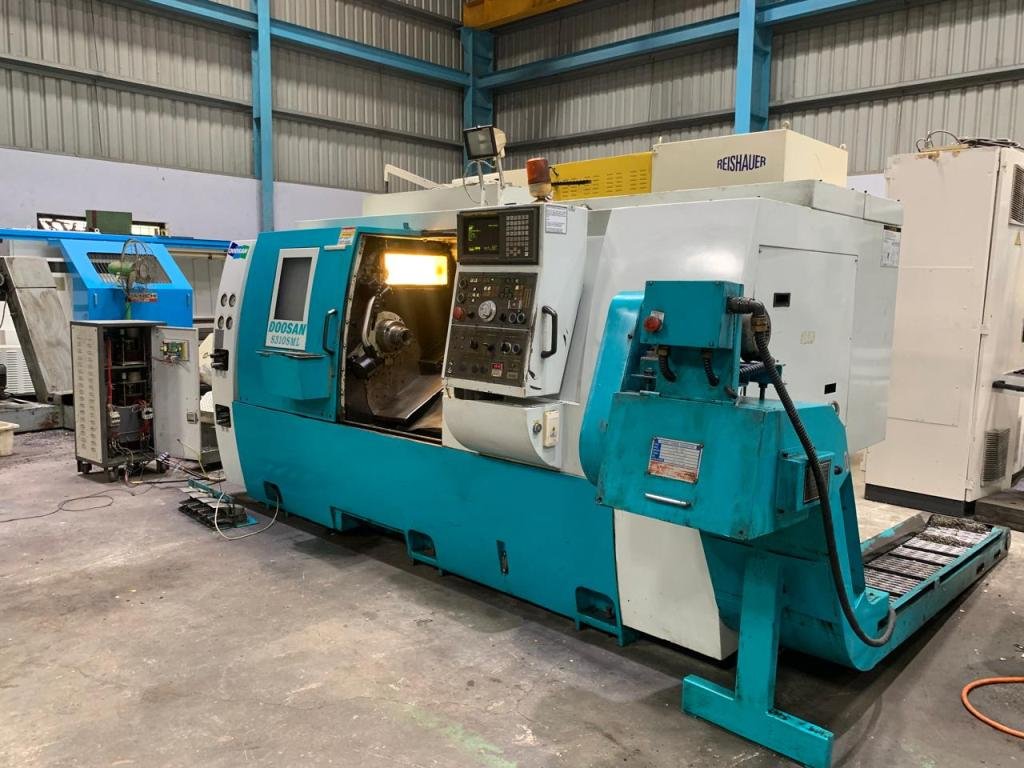

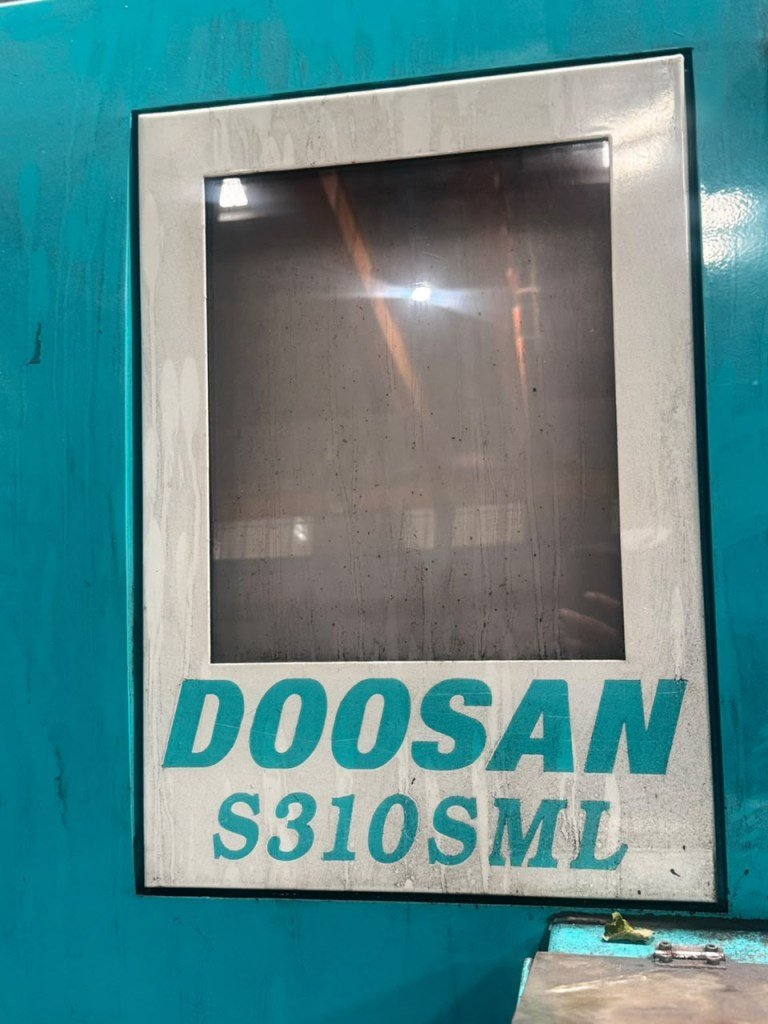

- Make – DOOSAN

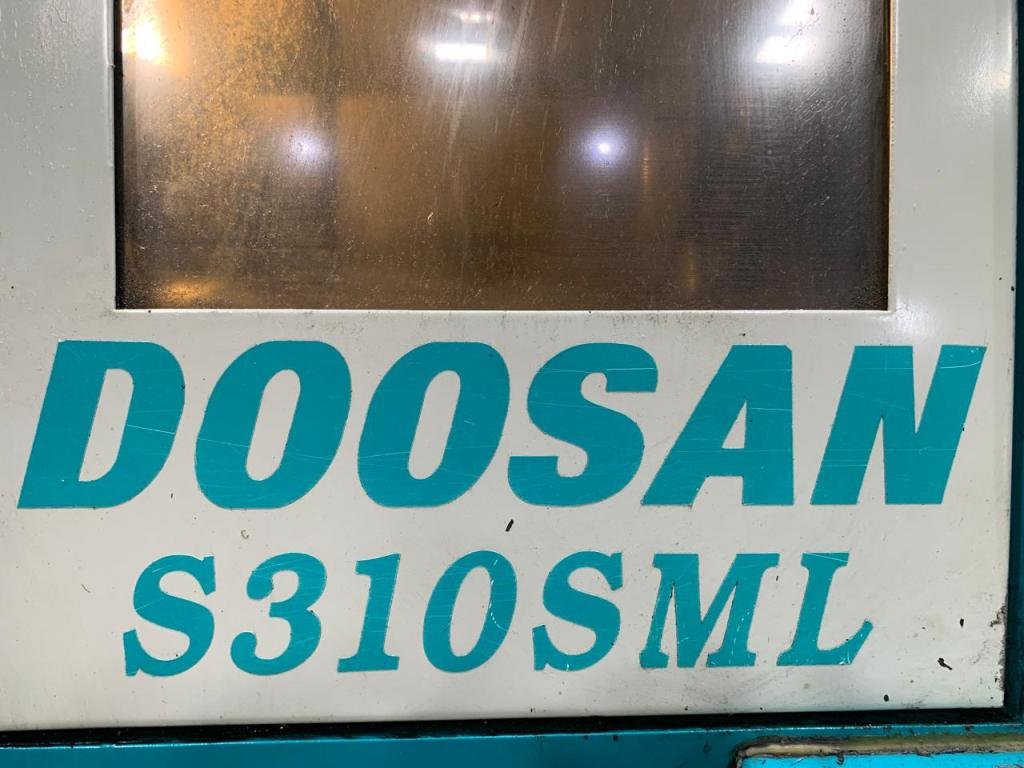

- Model – S310SML
- Country – South Korea

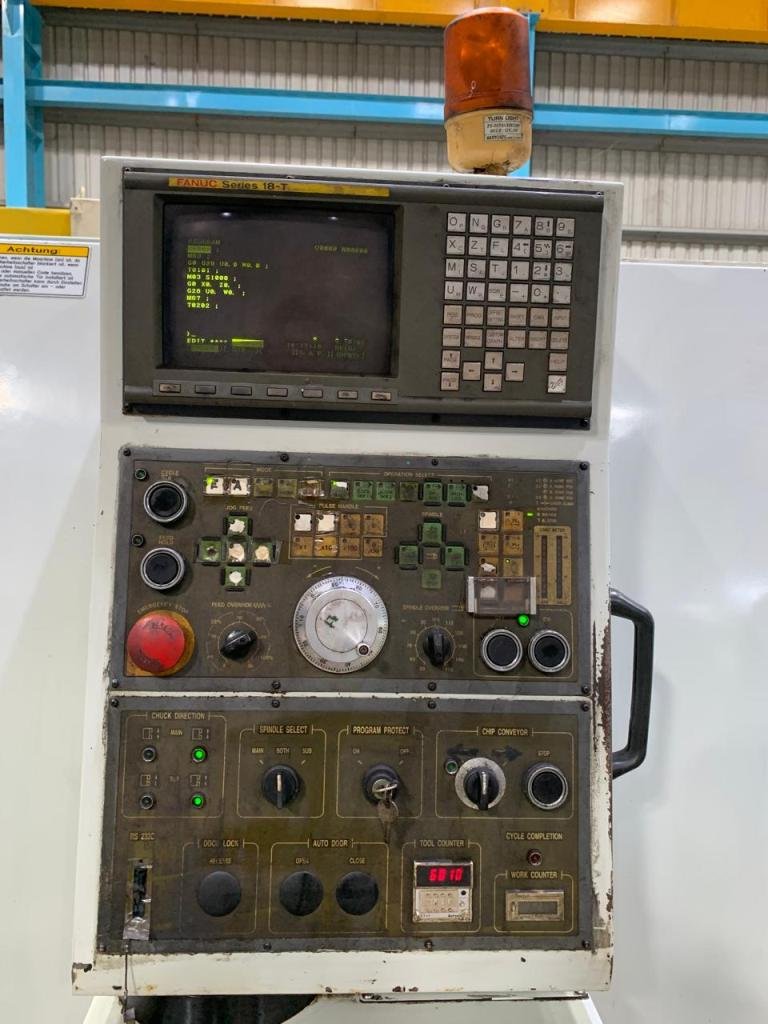

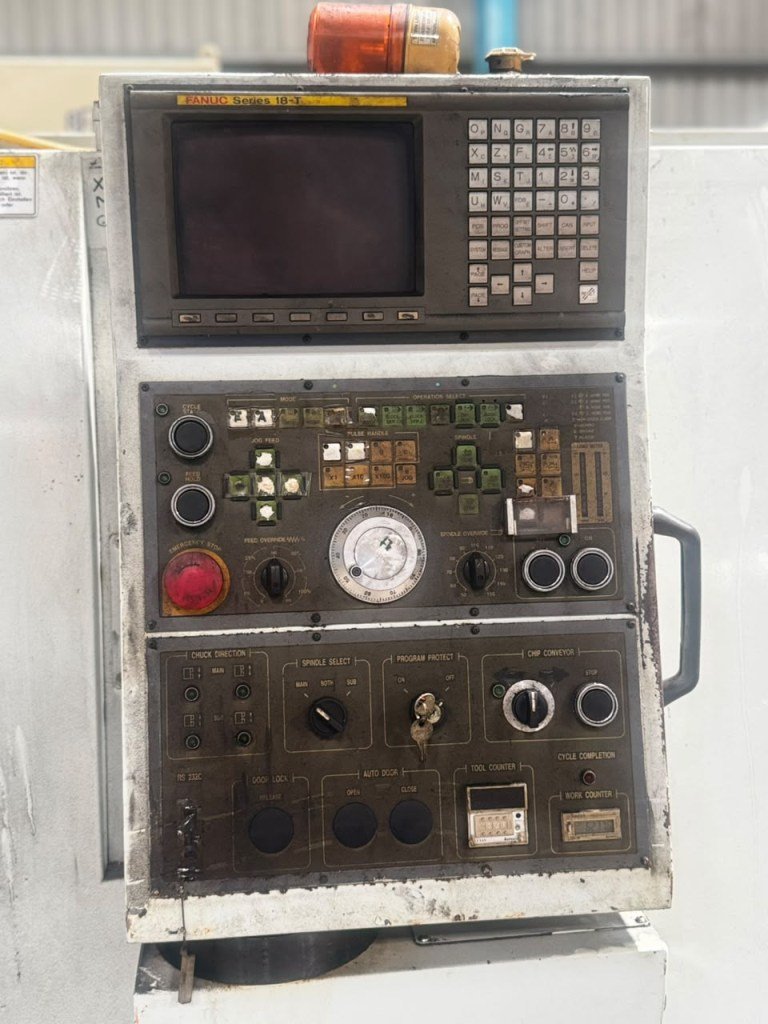

- CNC Control – FANUC 18T
- Max. Turning Diameter – 386 mm
- Max. Swing Over Bed – 500 mm
- Max. Turning Length – 762 mm
- Max. Bar Capacity – 65 mm
- X-Axis Travel – 200 mm
- Z-Axis Travel – 750 mm
- Sub-Spindle Travel – 660 mm
- C-Axis – 360° (0.001°) on Both Spindles
- X-Axis Rapid Traverse – 24,000 mm/min
- Z-Axis Rapid Traverse – 30,000 mm/min
- Main Spindle Bore – 77 mm
- Sub-Spindle Bore – 48 mm
- Main Spindle Nose – A2-8
- Sub-Spindle Nose – A2-5
- Main Spindle Speed – 45–4,500 RPM
- Sub-Spindle Speed – 45–4,500 RPM
- Live Tool Speed – 3,000 RPM
- Main Spindle Power – 20 HP
- Sub-Spindle Power – 7.5 HP

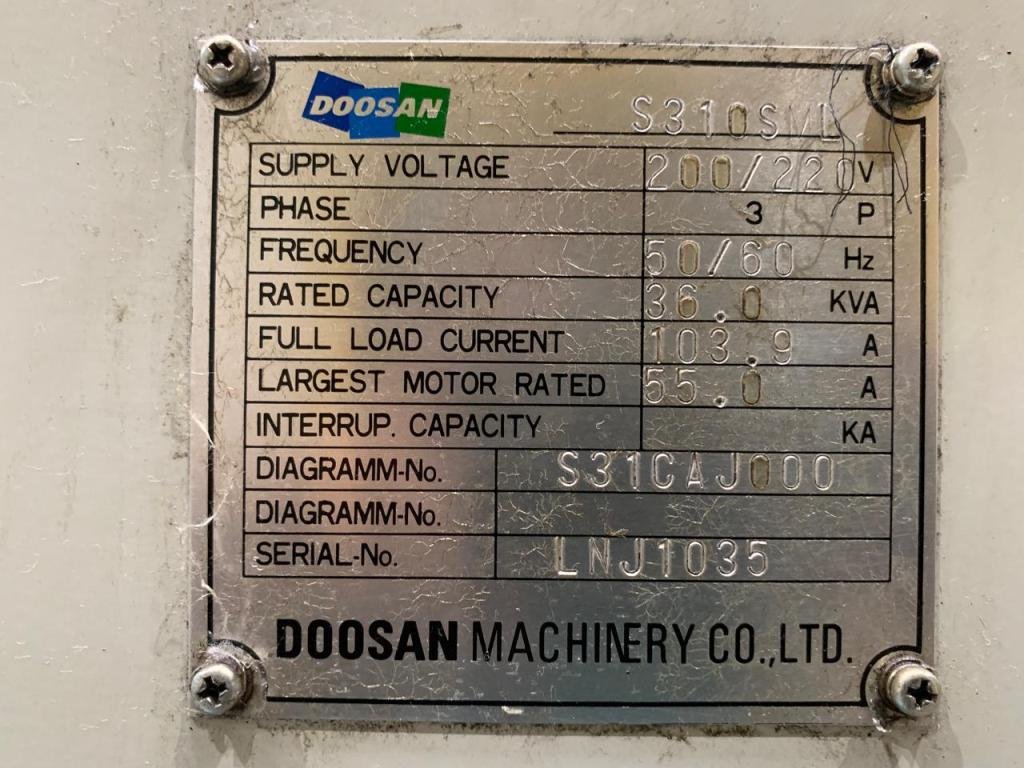

- Power Supply – AC 200/220 V, 3-Phase, 50/60 Hz
- Power Requirement – 40 kVA
- Machine Weight – Approx. 6,350 kg

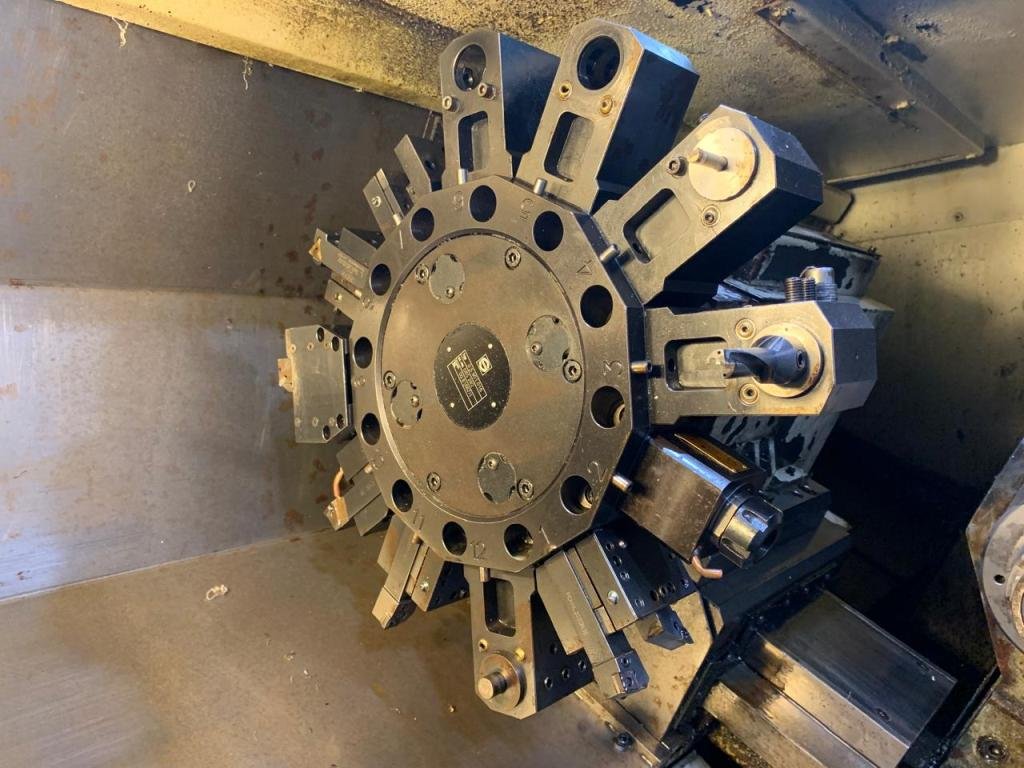

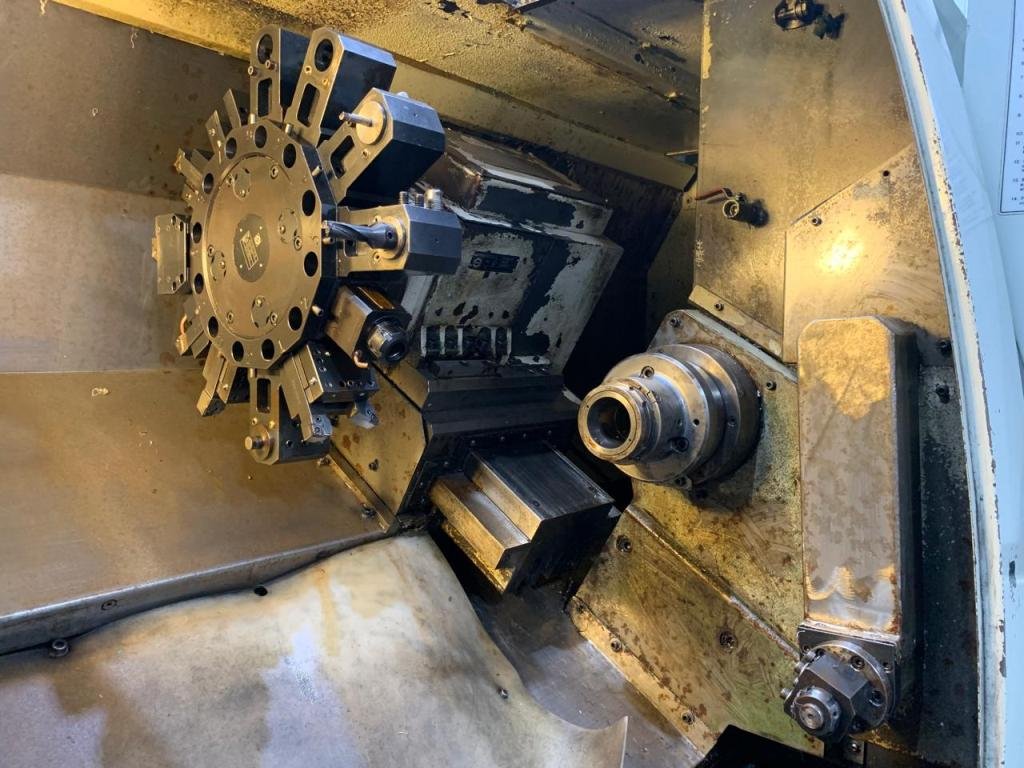

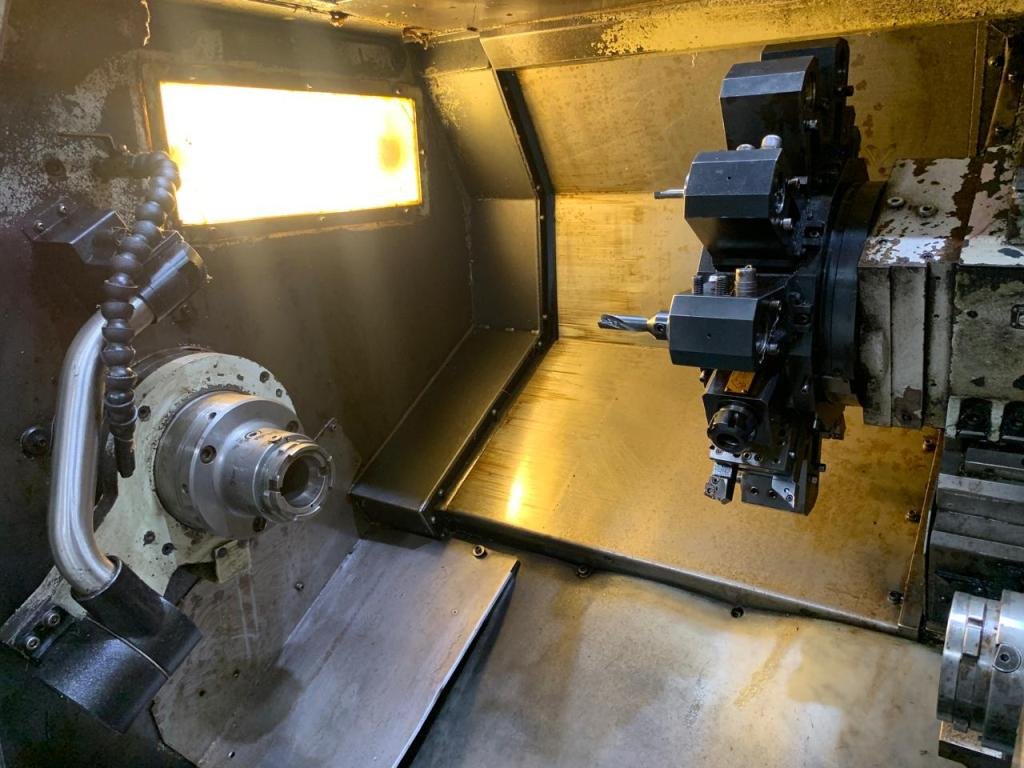

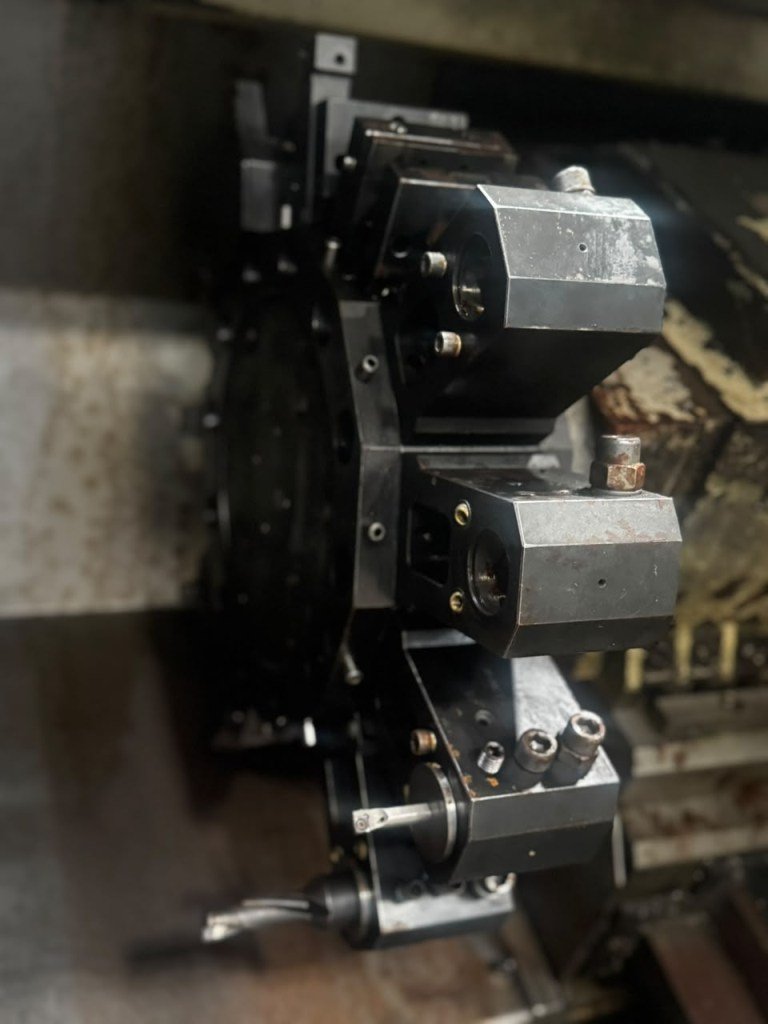

- Equipment – 12-Station Turret with Live/Rotary Tools
- C-Axis Control – Servo-Controlled Full C-Axis on Both Spindles
- Tool Presetter – Included
- Parts Catcher – Automatic
- Rigid Tapping – Both Spindles
- Chuck Control – Foot Operated
- Chip Conveyor – Turbo Systems
- Tooling – Live Tools & Static Tool Holders
- Documentation – Available Books, Tool Holders & Tooling
