Technical Specification
- Make – GILDEMEISTER
- Model – CTX-400 S2
- Made in – Germany

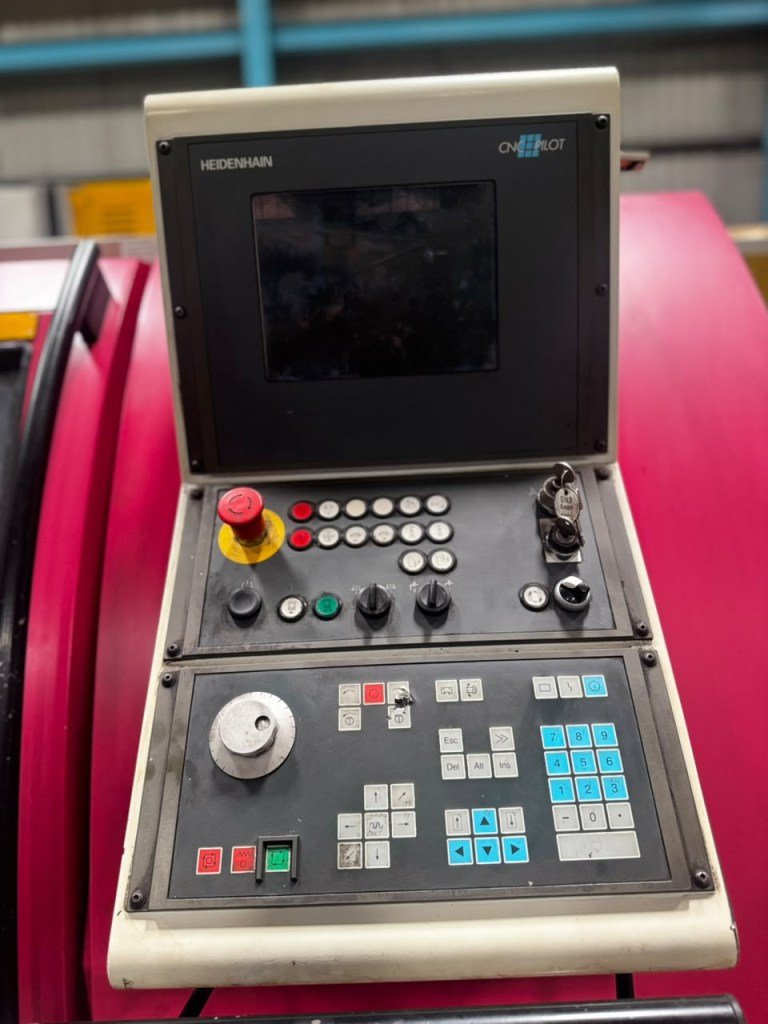

- Control – Heidenhain / CNC Pilot
- Max. Turning Diameter – 420 mm
- Max. Swing Over Bed – 570 mm
- Max. Turning Length – 635 mm
- X-Axis Travel – 220 mm
- Z-Axis Travel – 635 mm
- Spindle Bore – 79 mm
- Spindle Speed – 25–5000 RPM
- Spindle Motor – 21 kW
- Chuck Size – 200 / 250 mm
- Turret – 12 Station
- Tool Holder – VDI 30
- Rapid Traverse X/Z – 20 / 24 m/min
- Tailstock Quill – MK4
- Machine Weight – Approx. 5.5 Tonnes
- Power Supply – 400 V, 3 Phase, 50 Hz
- Connected Load – 44 kVA
