Technical Specification

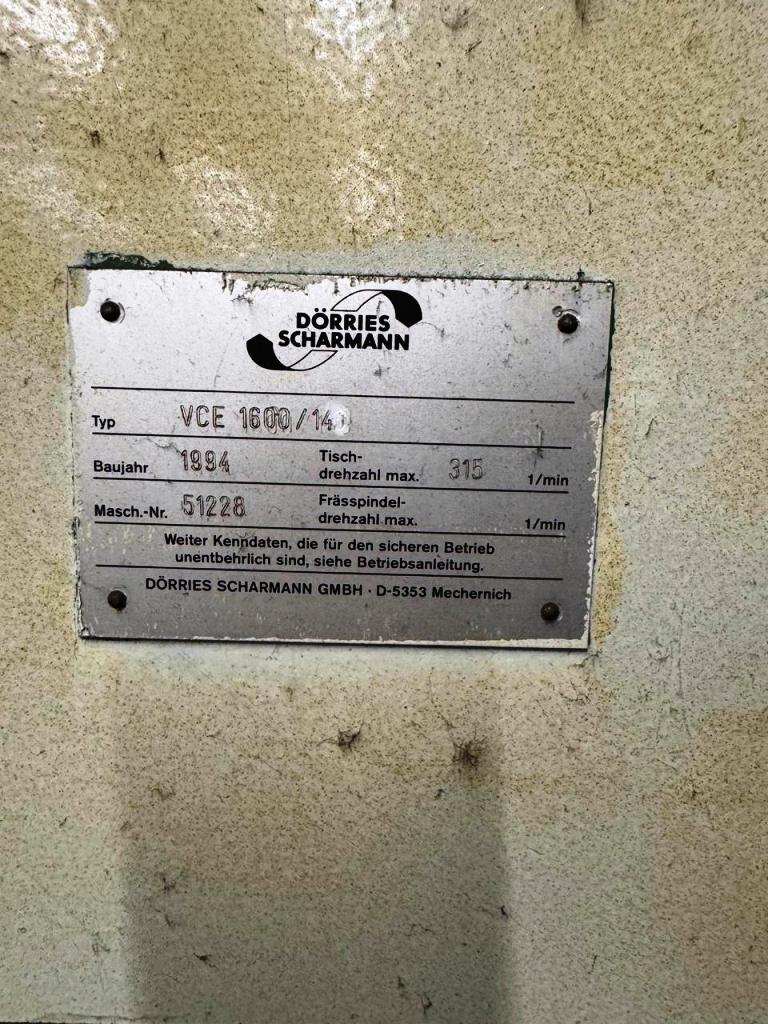

- Make – Dorries Scharmann
- Model: VCE 1600/140 SM

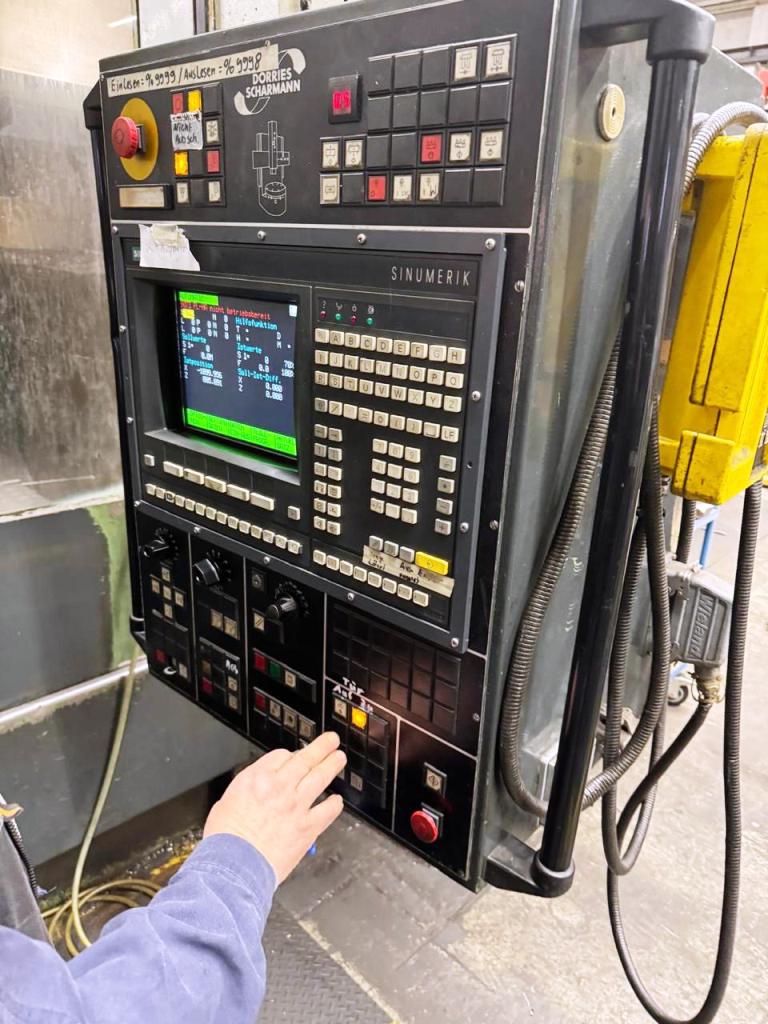

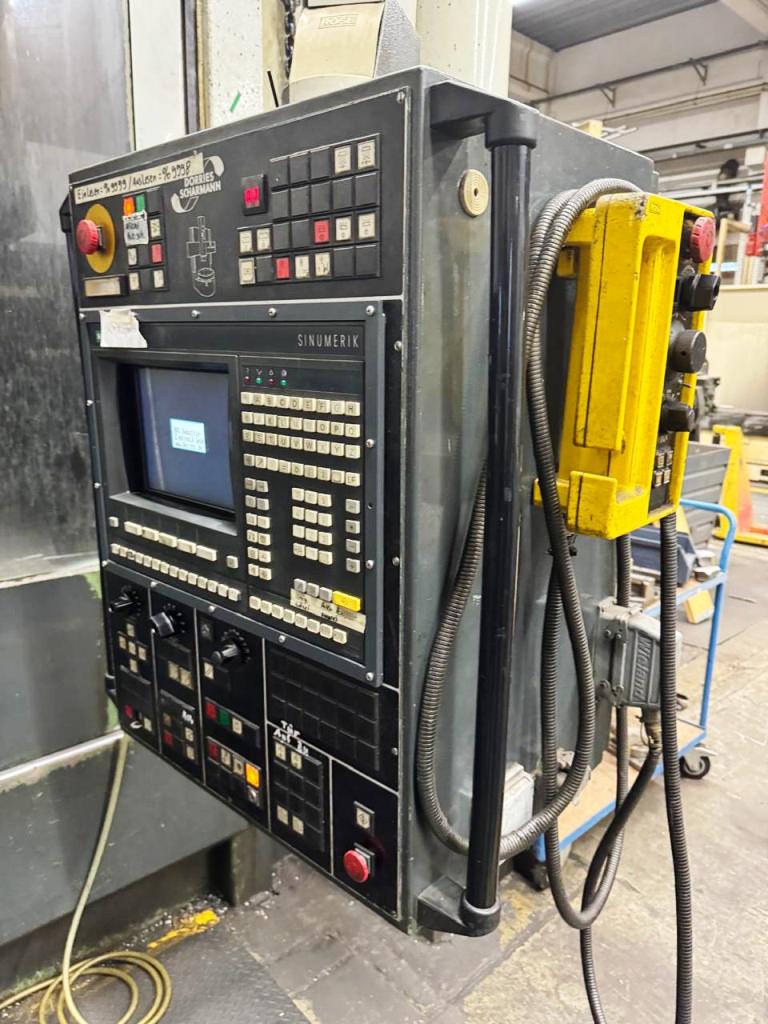

- Control – Siemens 880
- Country – Germany
- Chuck Dia – 1400 mm
- Swing diameter – 1750 mm
- Turning height – 1500 mm
- Table load: max. 9,000 kg
- Ram entry bore: min. 340 mm
- Tool magazine positions: 20
- Tool radius: max. 200 mm
- Tool length: max. 675
- Large clamping jaw package;
- Fully enclosed
- Chip conveyor
- Coolant system
