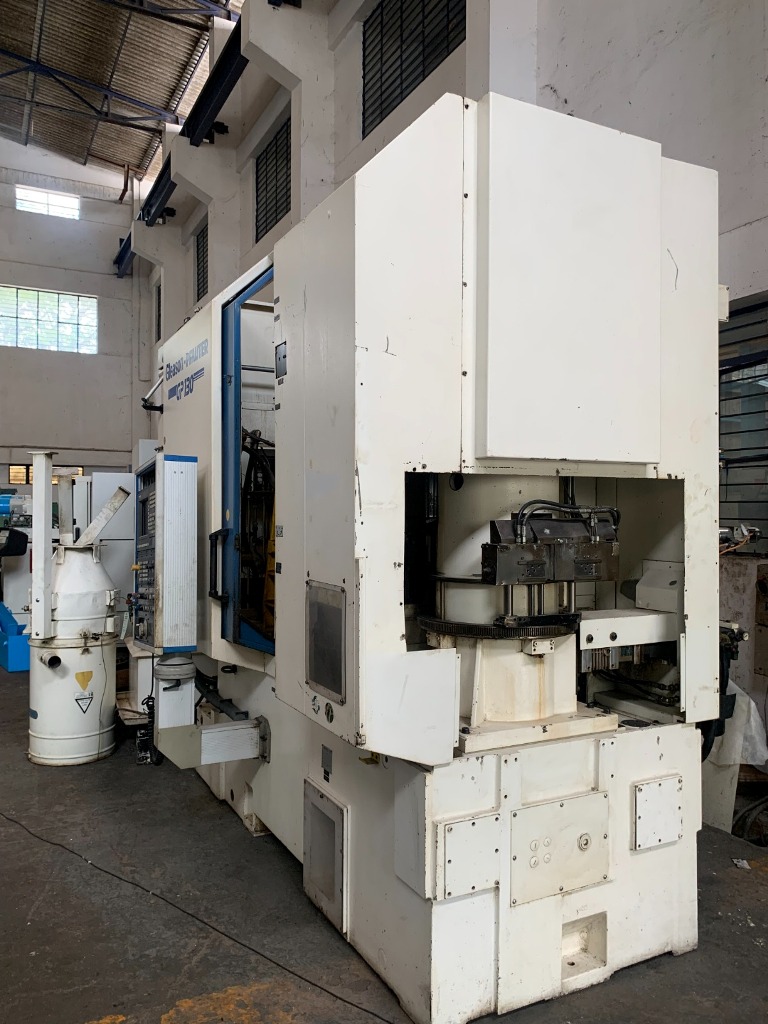

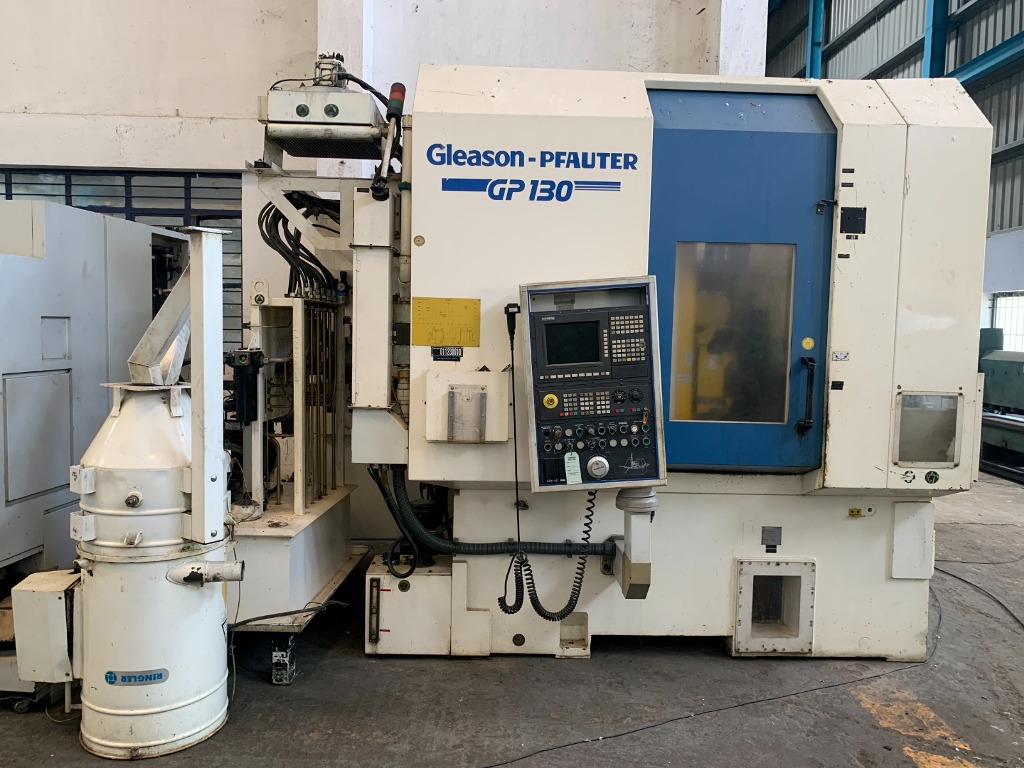

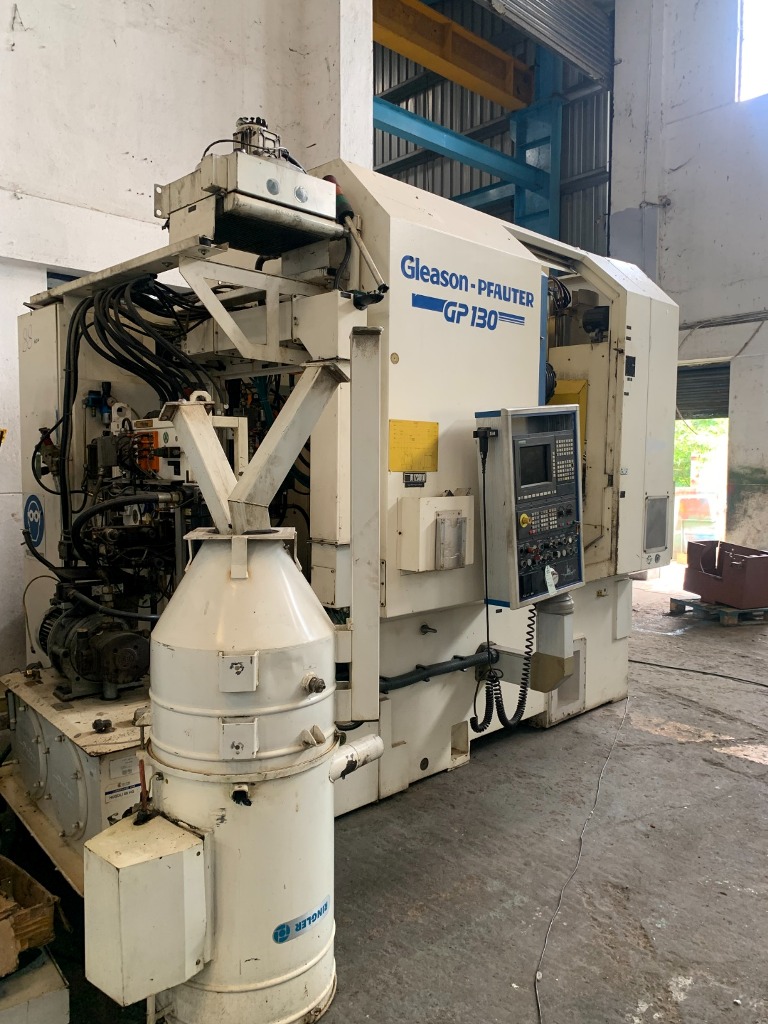

Gleason GP 130 CNC GEAR HOBBING 2001



Make / Model  Gleason Pfauter
Model GP 130
Nominal workpiece Dia 130 mm
Maximum axial slide travel 250mm



Product ID : UM2024030503

Enquiry

Technical Specification

  • CNC GEAR HOBBING MACHINE
  • Make – Gleason Pfauter
  • Model – GP 130
  • Year – 2001

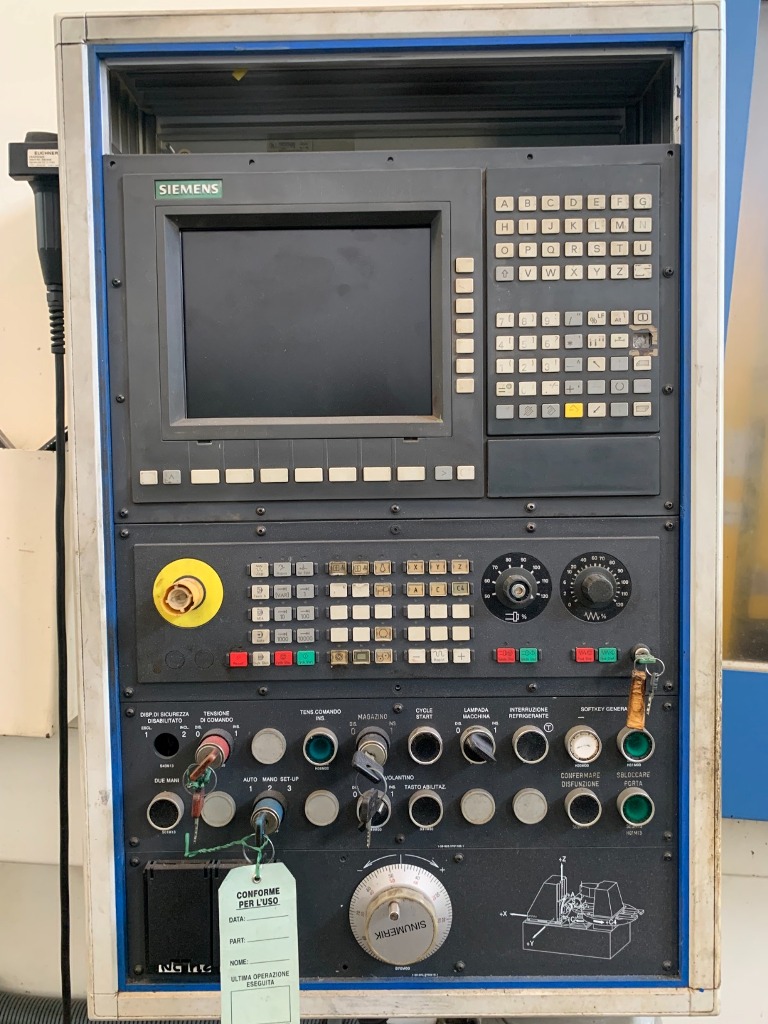

  • Control – SIEMENS 840.
  • Nominal workpiece diameter – 130 mm
  • Nominal module – 3 mm
  • Maximum axial slide travel – 250 mm
  • Hob swivel angle – +/-45
  • Maximum work spindle speed – 1000 rpm
  • Maximum hob diameter – 80 mm
  • Maximum hob length/total length – 170/245 mm
  • Maximum hob shift travel – 170 mm
  • Hob drive – 14kw
  • Maximum hob speed – 3000rpm
  • Table surface diameter – 160 mm
  • Machine weight – 10000kg
