Technical Specification

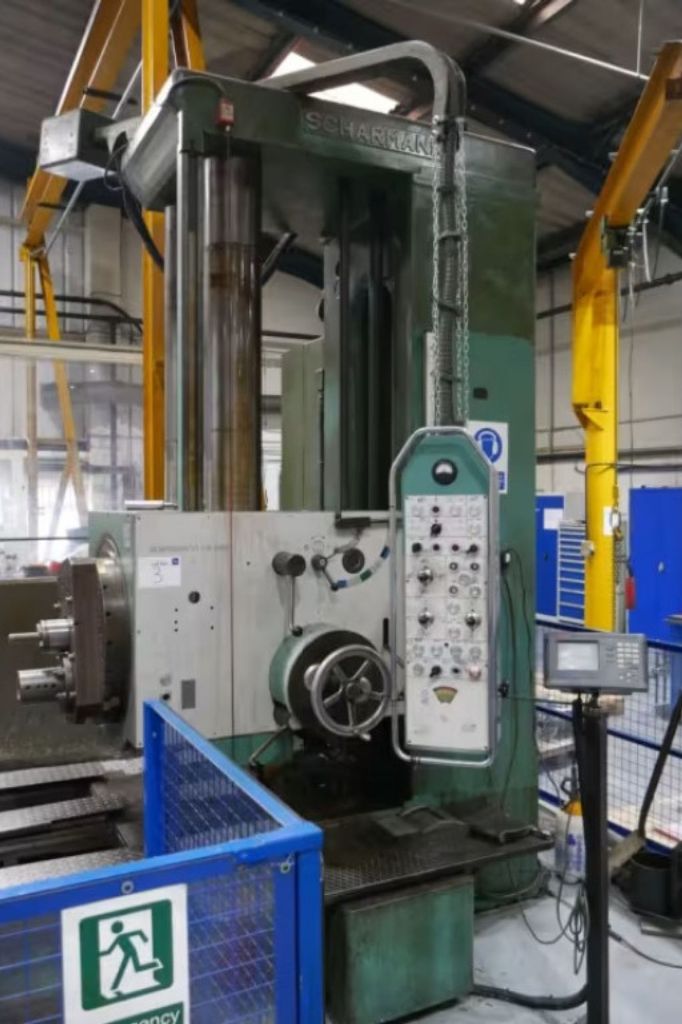

- Make – Scharmann
- Country – (Germany)

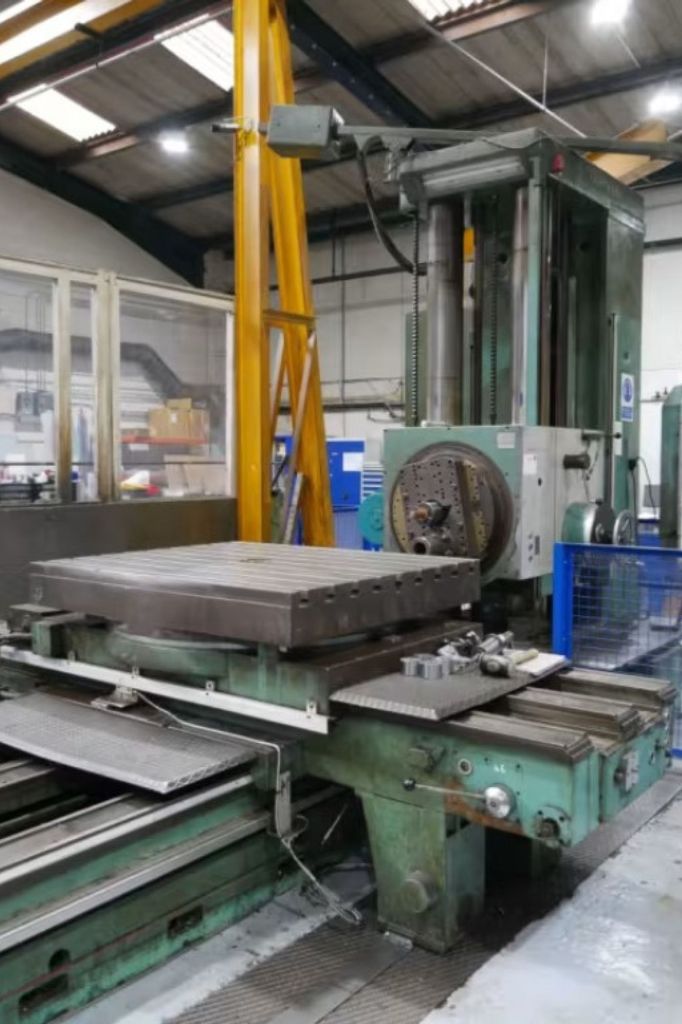

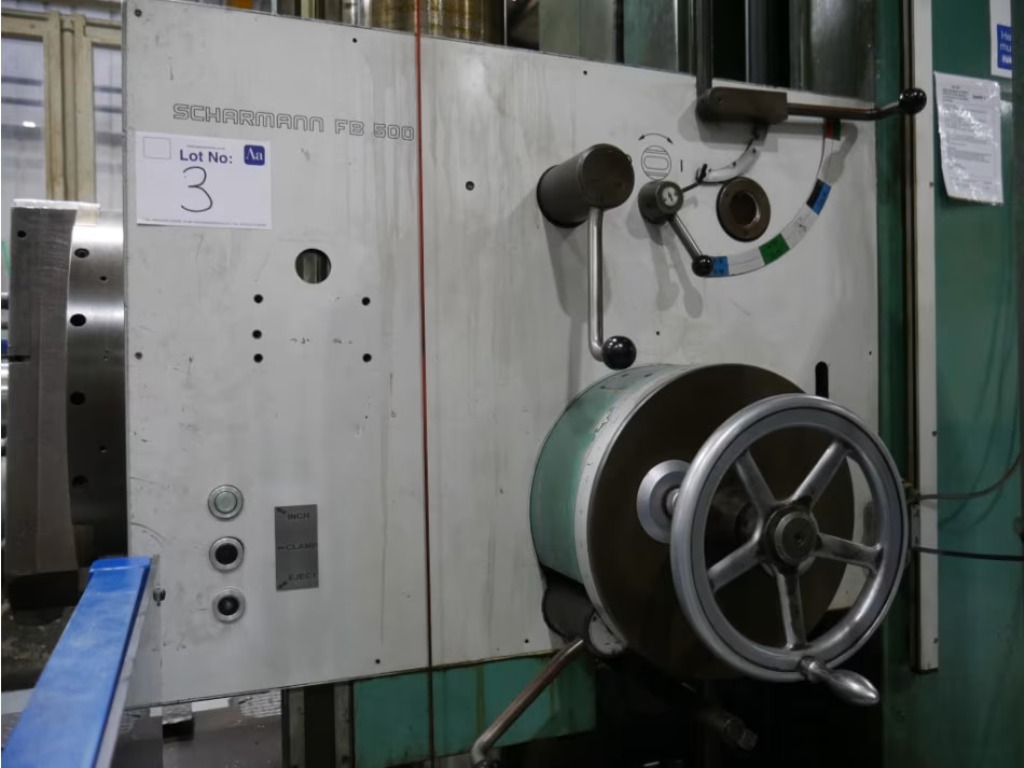

- Model – FB 500
- Spindle Diameter – 130 mm

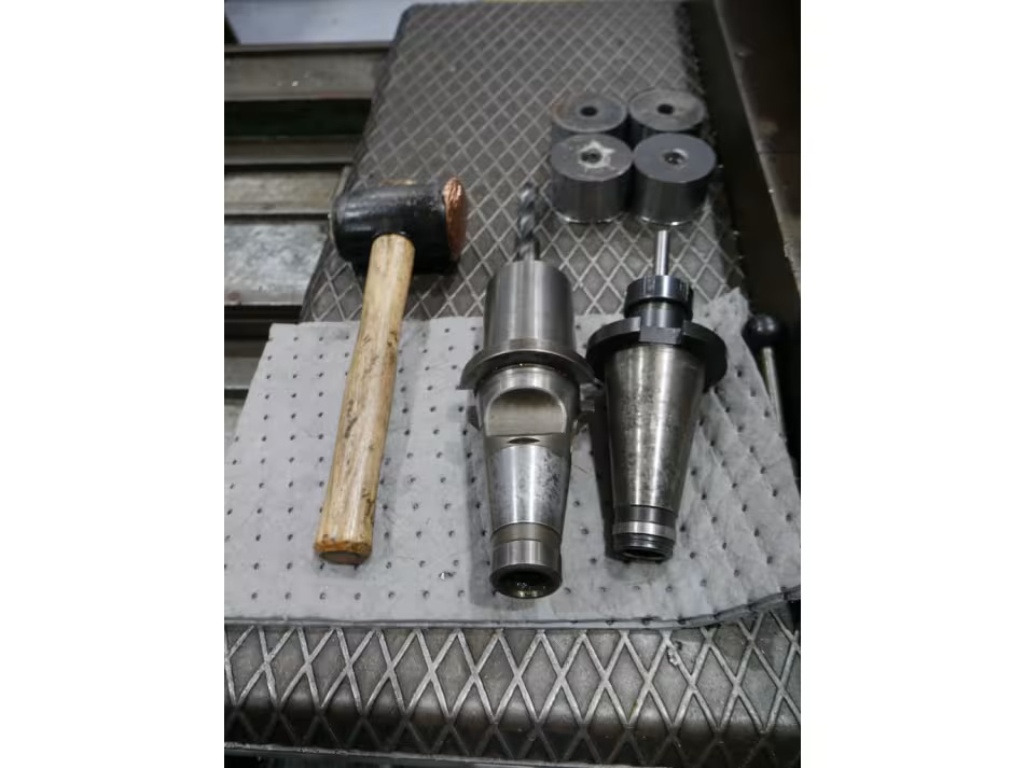

- Spindle Taper – ISO 50

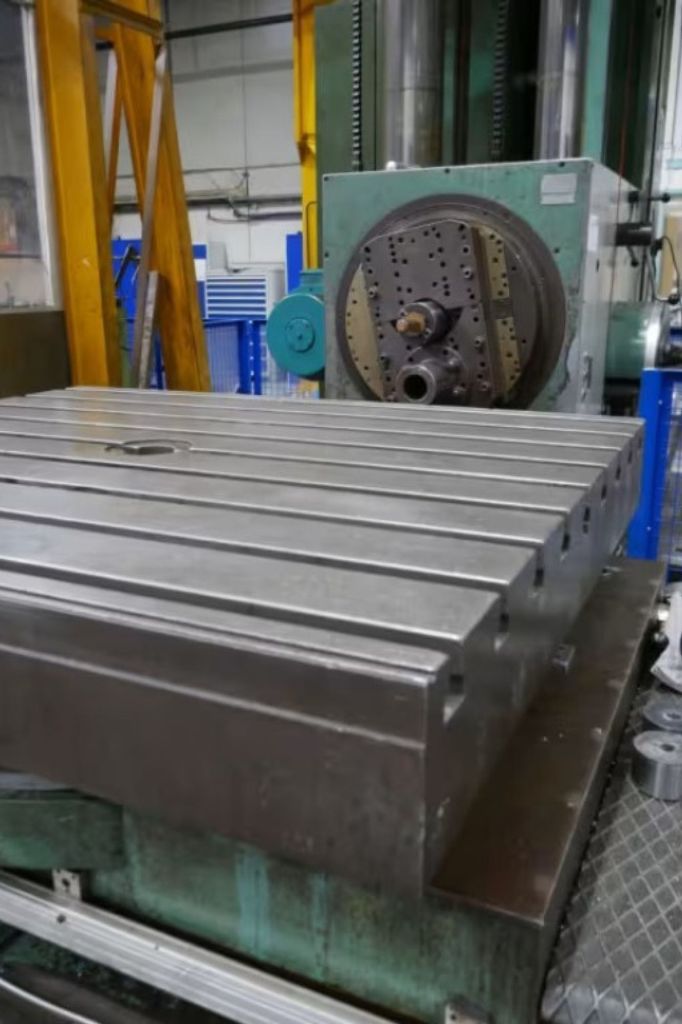

- Facing Slide – Ø660 mm

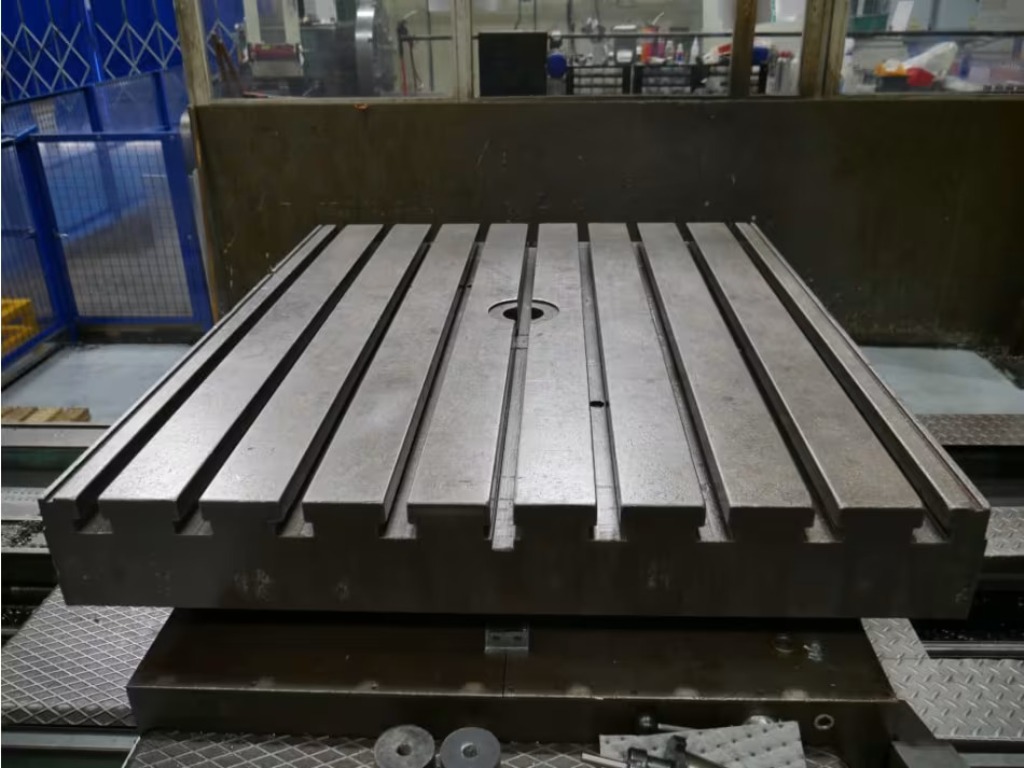

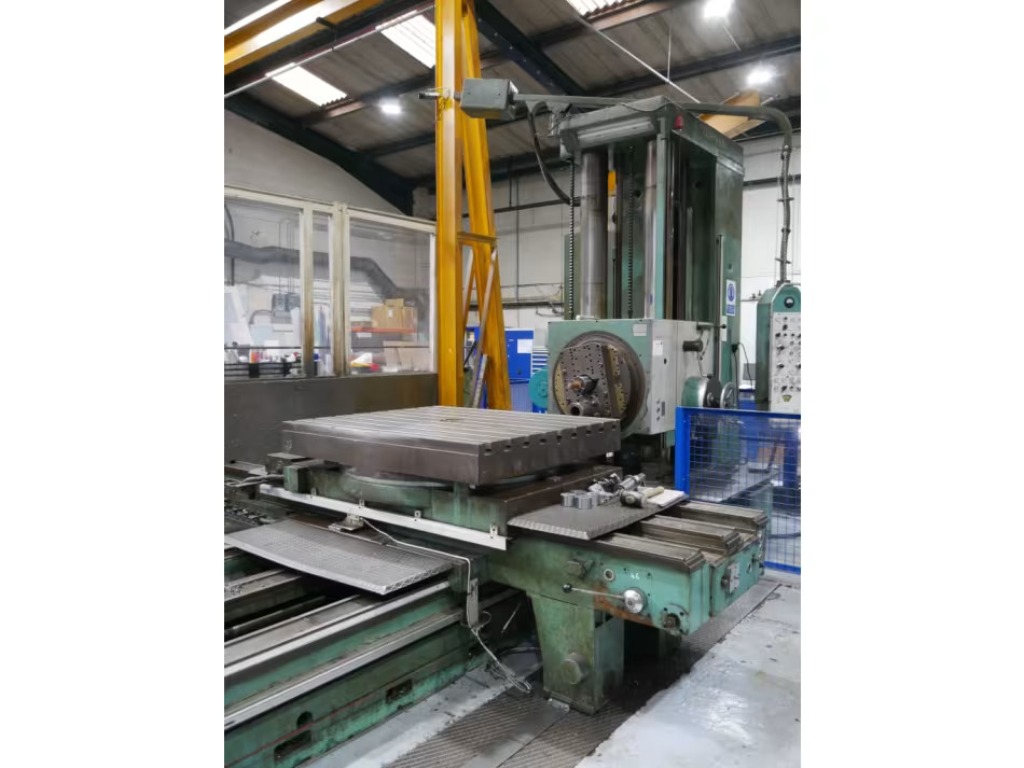

- Table Size – 1400 × 1200 mm
- Rotary Table – 360°
- X Travel – 1600 mm
- Y Travel – 1400 mm
- Z Travel – 2000 mm
- W (Spindle) Travel – 800 mm
- Spindle Speed Range – 3.5 to 700 RPM (4 Gear)
- Rapid Traverse – 5000 mm/min

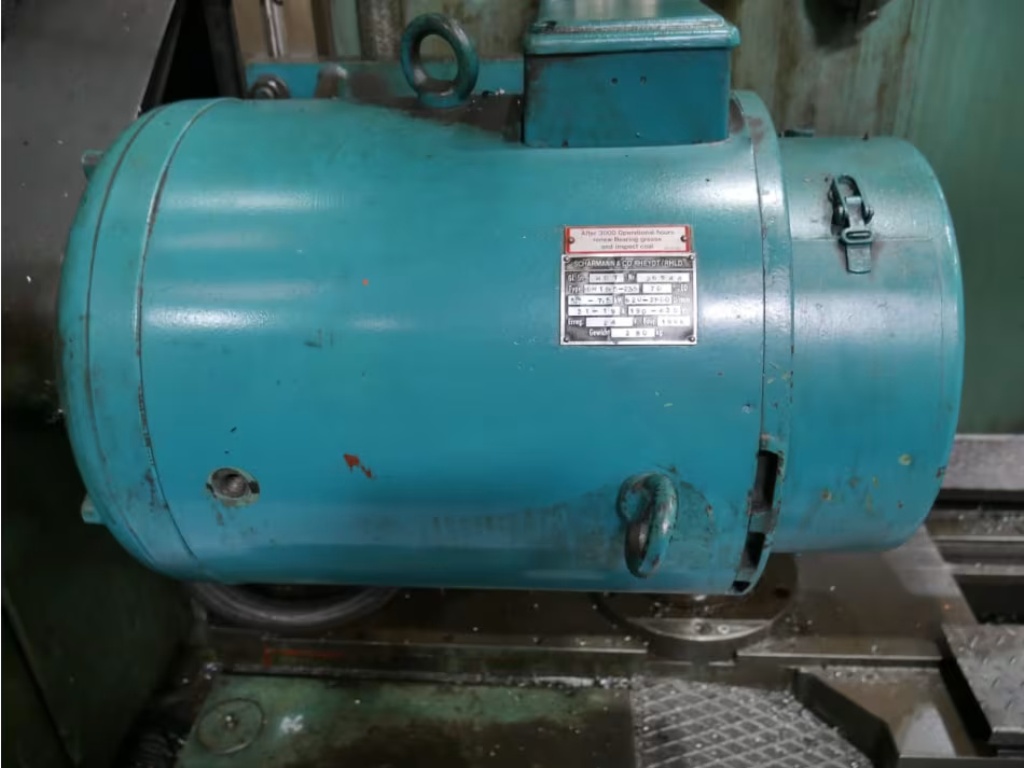

- Spindle Motor – 7.5 kW

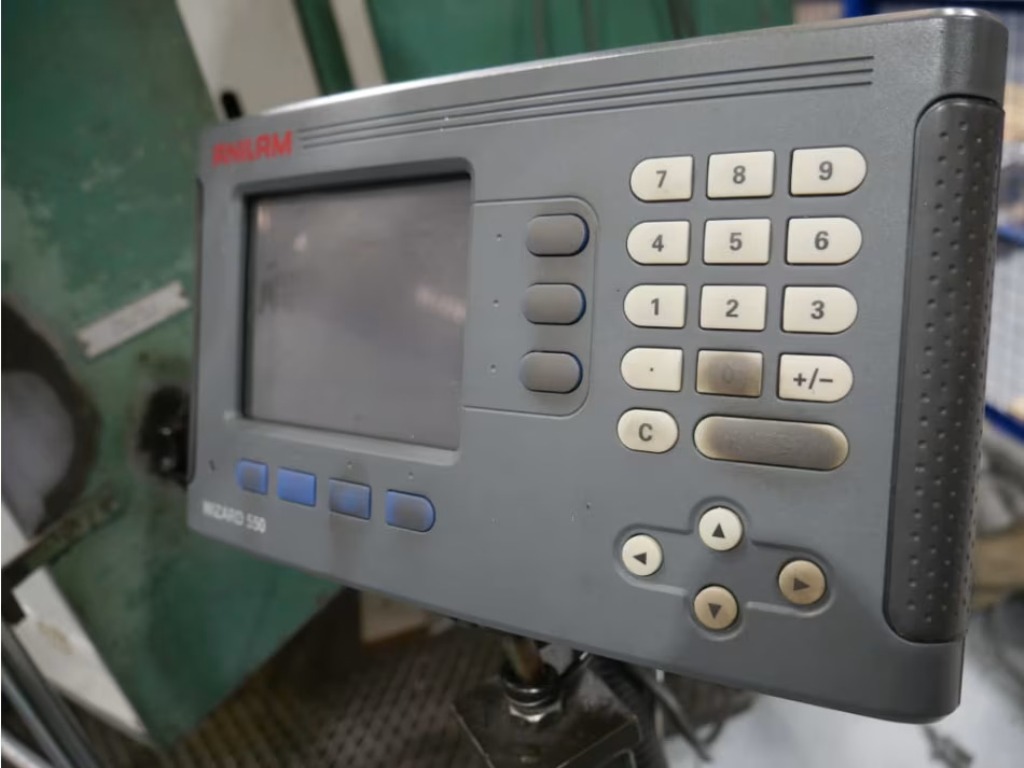

- Accessories – Facing Slide, Anilam Wizard 550 (3-Axis DRO)
