Horizontal Boring WMW Union 102

Technical Specification

• Make – WMW Union
• Model – BFT 90/3-3
• Country – Germany

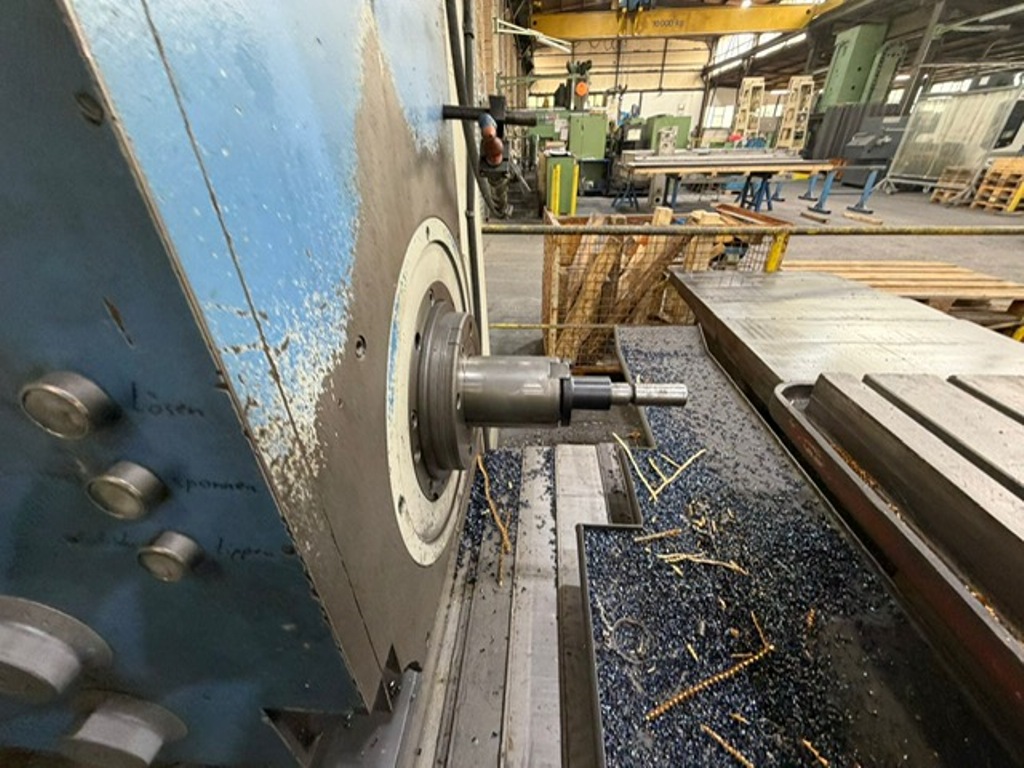

• Spindle Diameter – 102 mm
• Spindle Taper – ISO 50
• X-Axis Travel – 1600 mm
• Y-Axis Travel – 1250 mm
• Z-Axis Travel – 1475 mm
• W-Axis – 710 mm

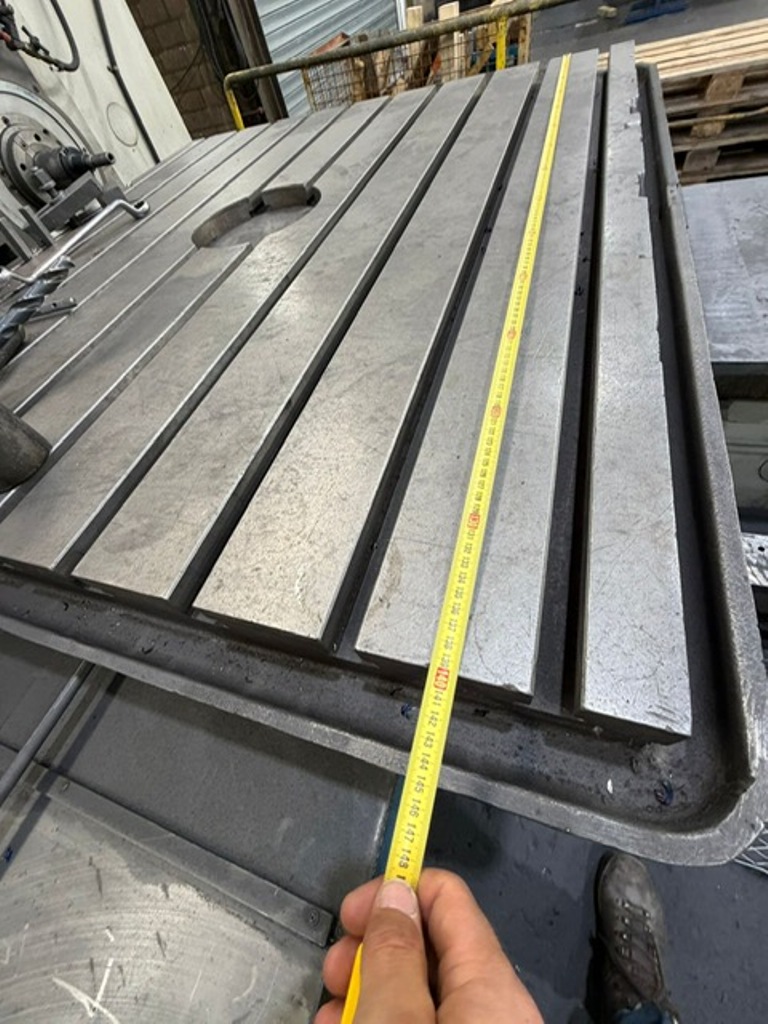

• Table Size – 1250 × 1400 mm
• Table Rotation – 360°
• T-Slots – 22 mm / 125 mm Pitch
• Table Center Bore – Ø250 H7 mm
• Table Load Capacity – 25 kN (End Position), 30 kN (Center Position) Spindle Speed Range – 8 – 1600 RPM
