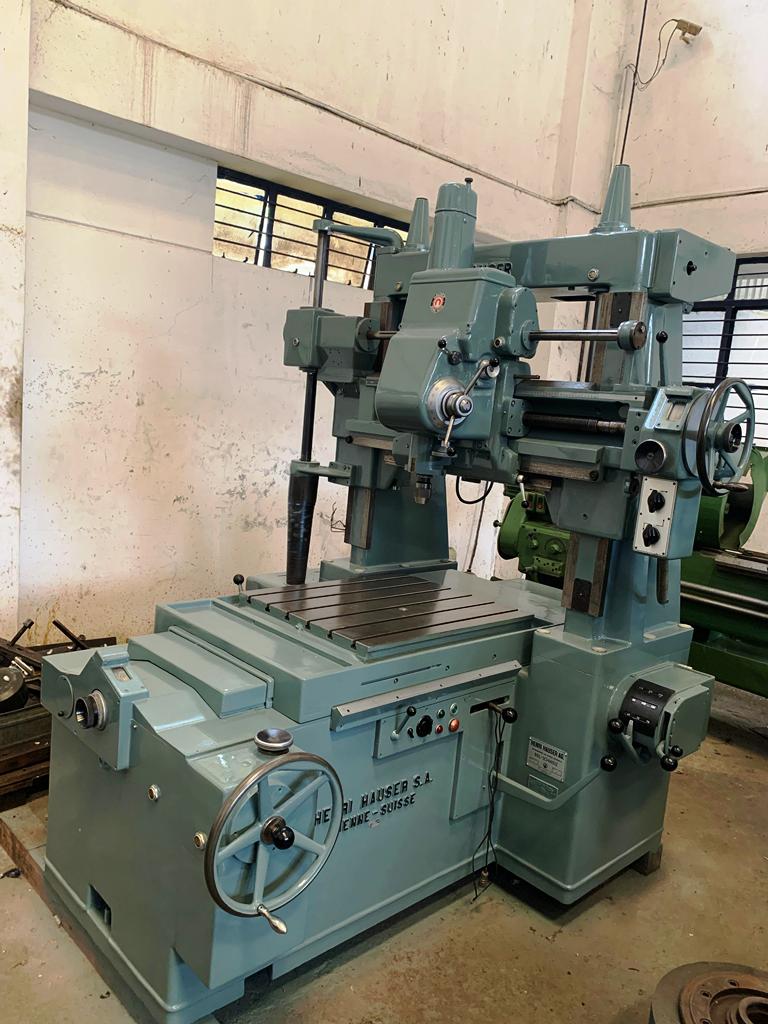

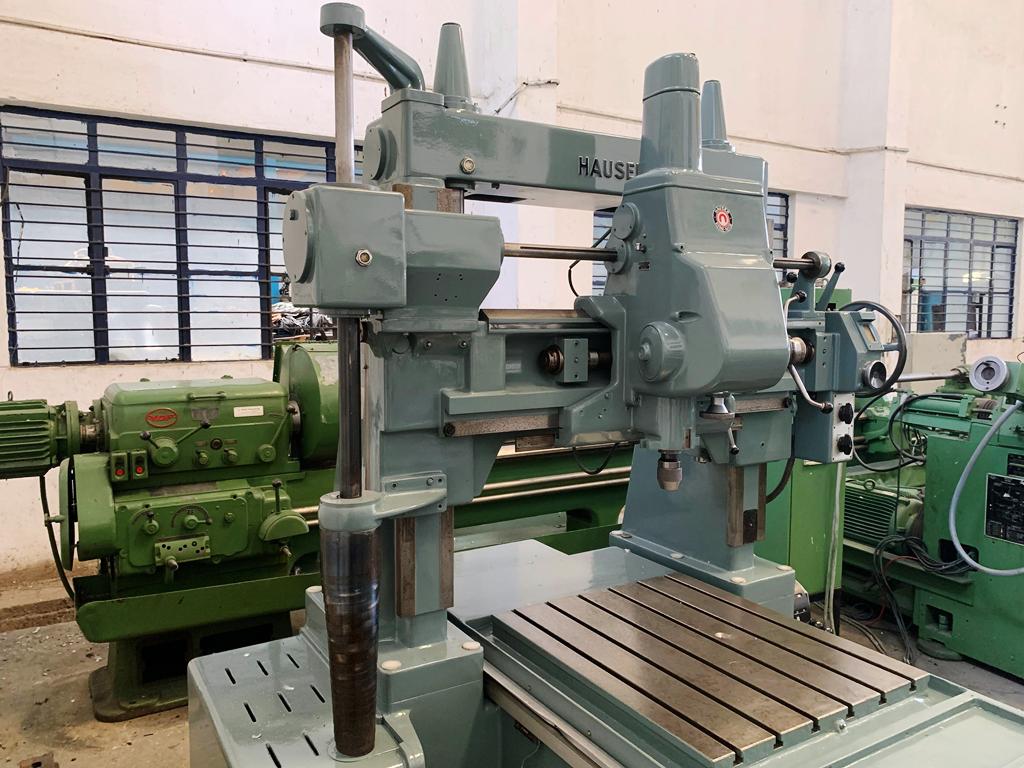

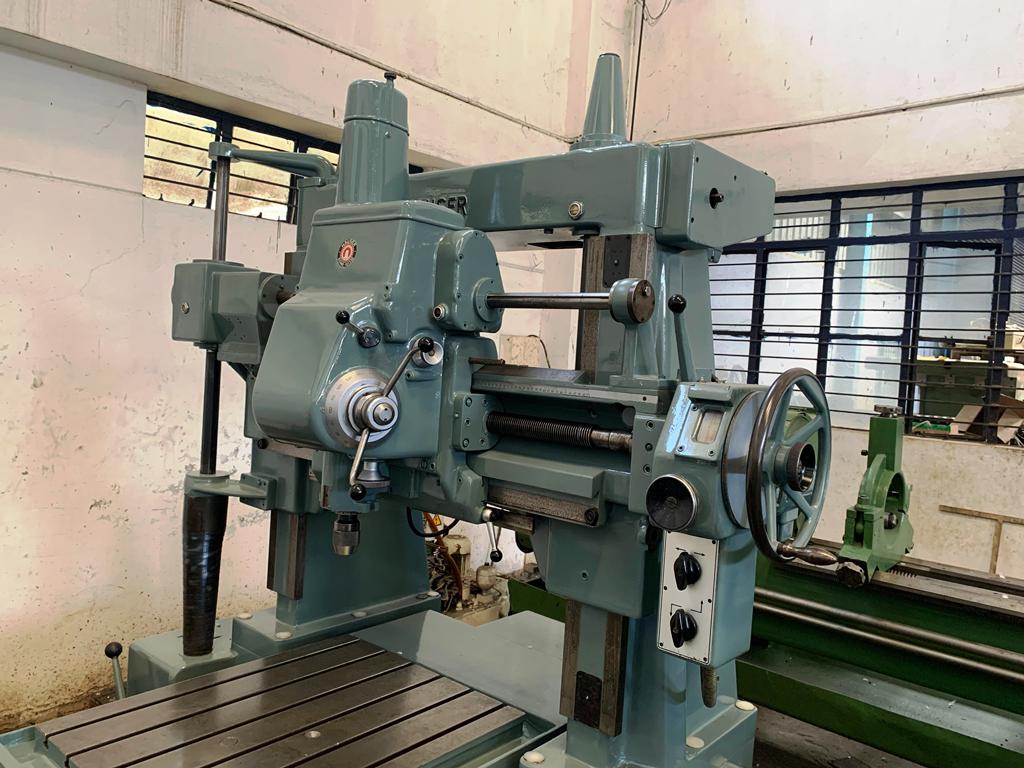

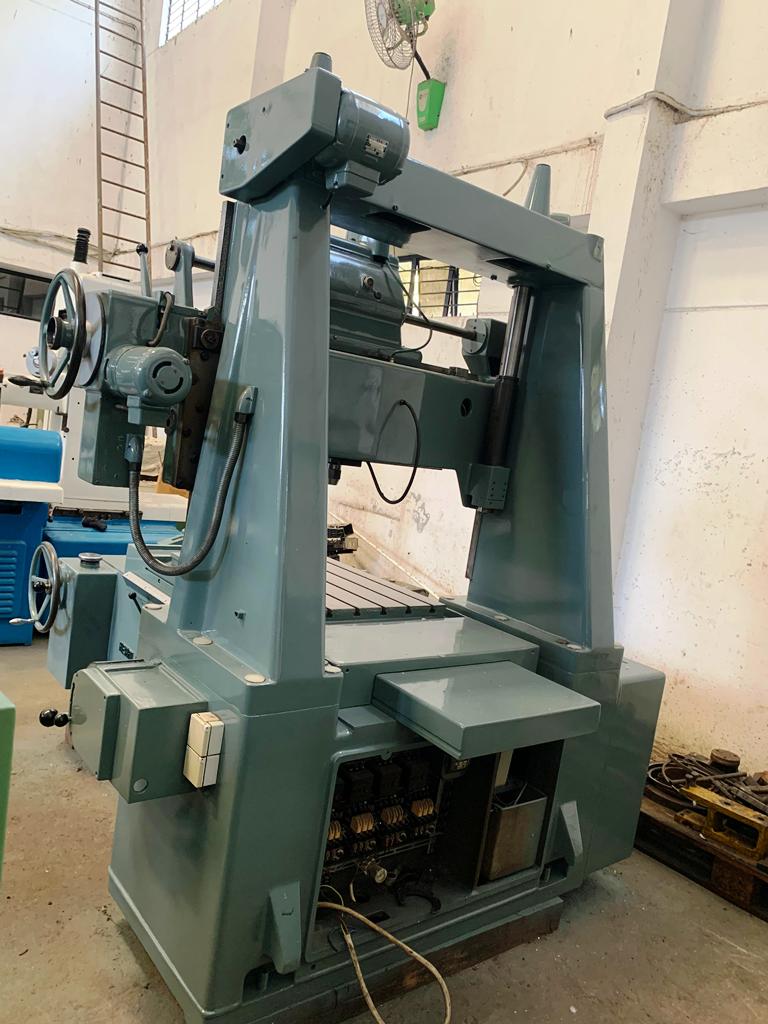

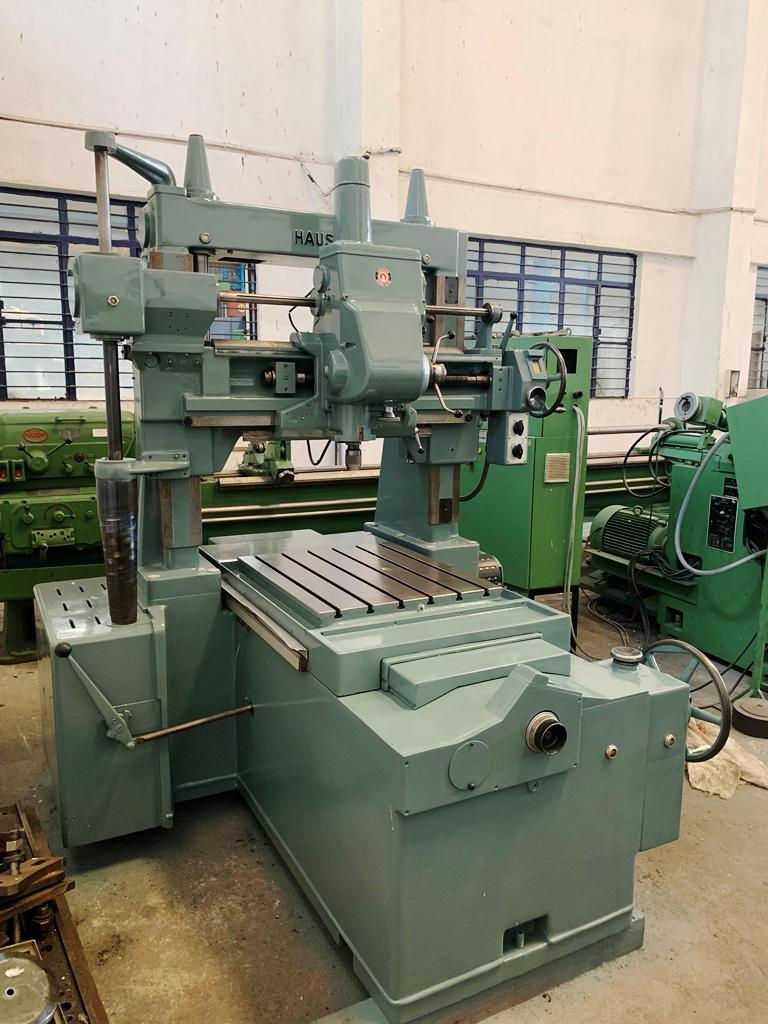

JIG BORING Hauser 5SM 750 mm x 620 mm

Technical Specification

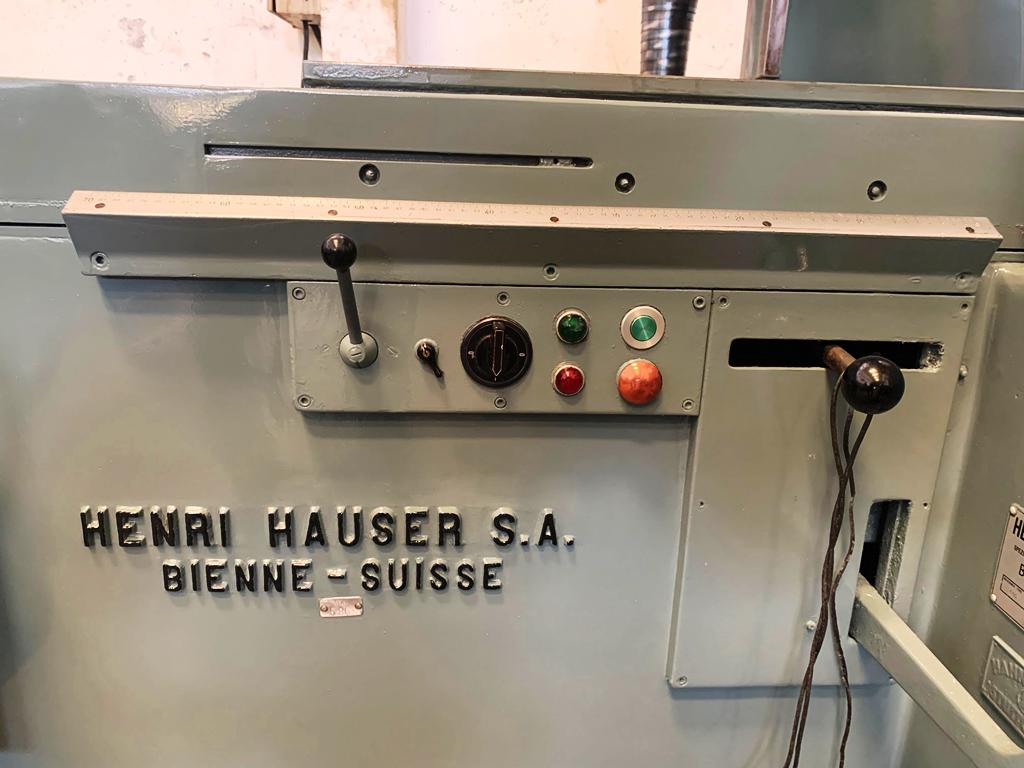

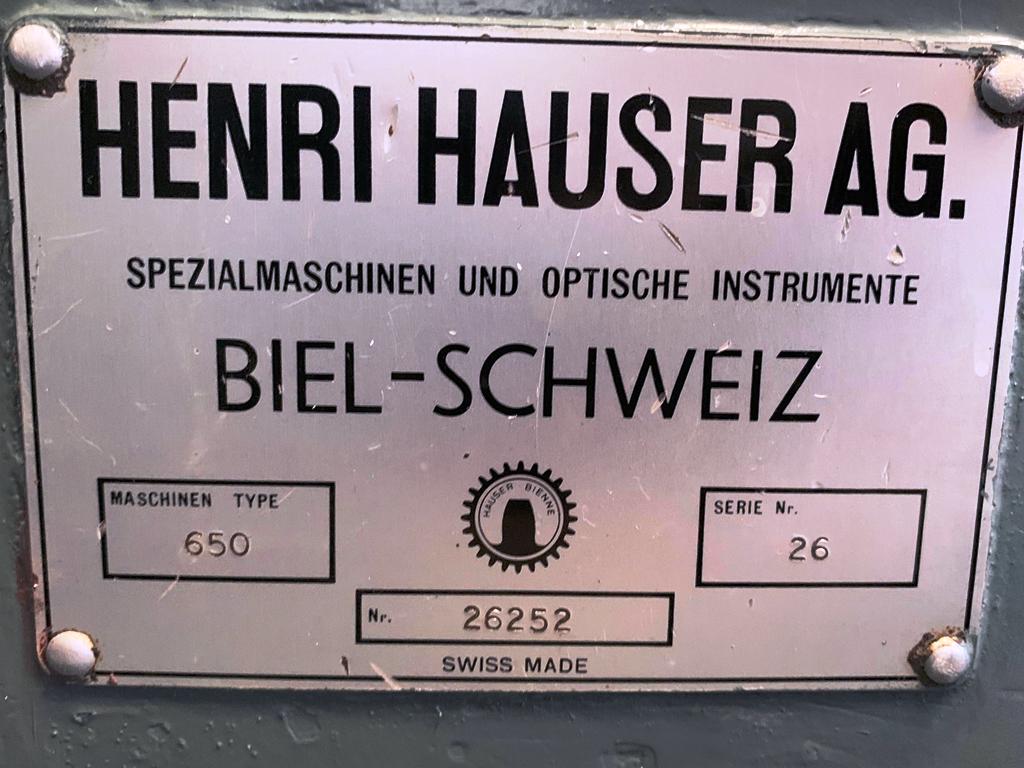

• Make – HAUSER
• Model – 5SM

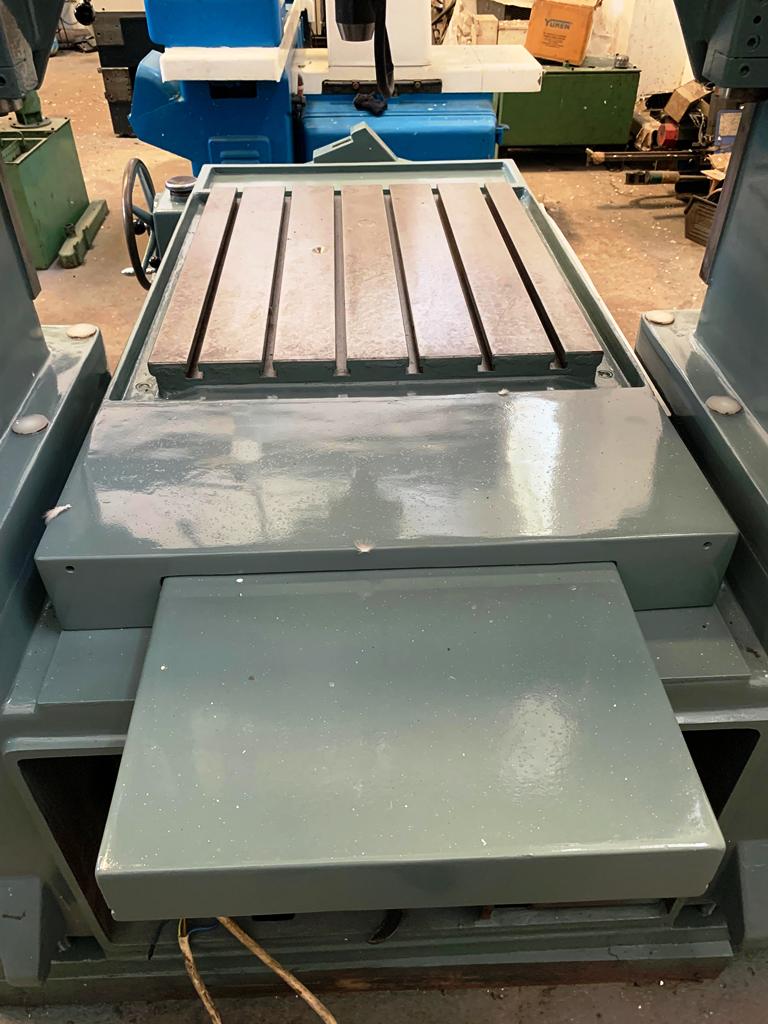

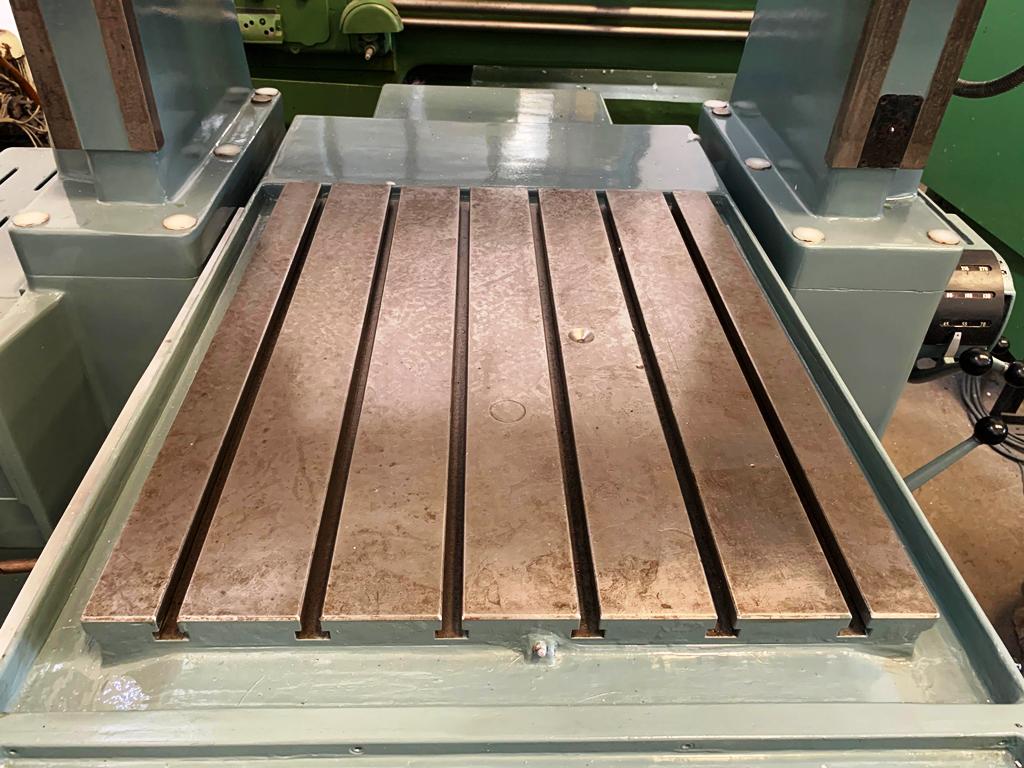

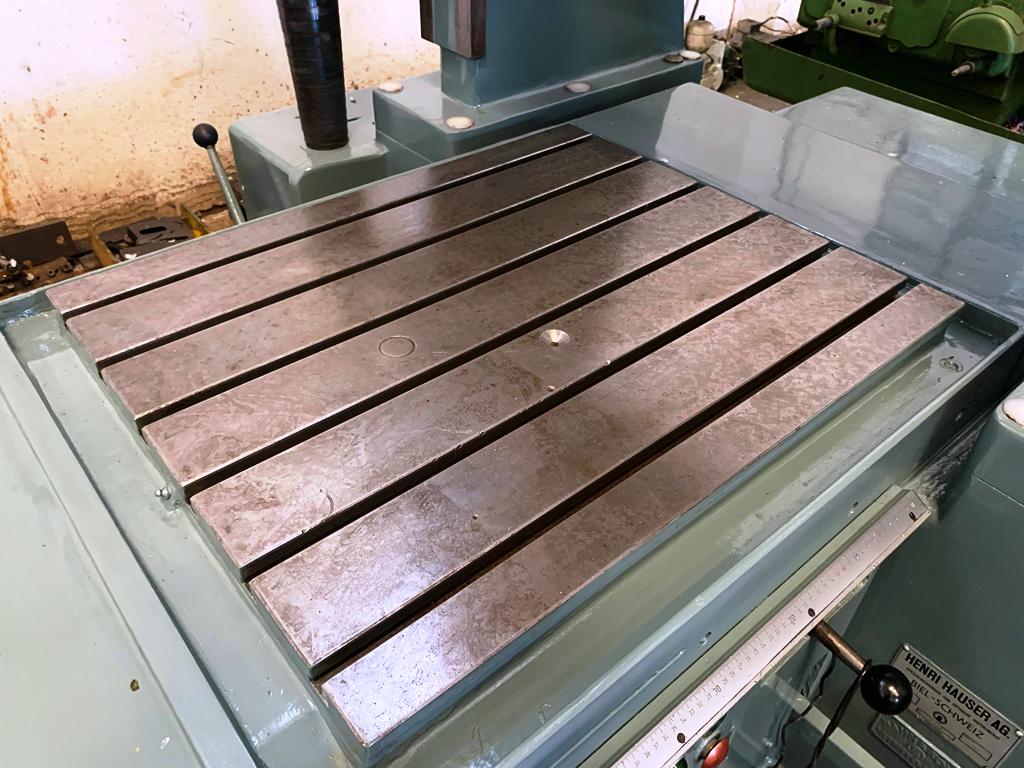

• Table length: 750 mm
• Table width: 620 mm
• Longitudinal travel (X-axis): 700 mm
• Transversal travel (Y-axis): 500 mm
• Vertical travel (Z-axis): 150 mm

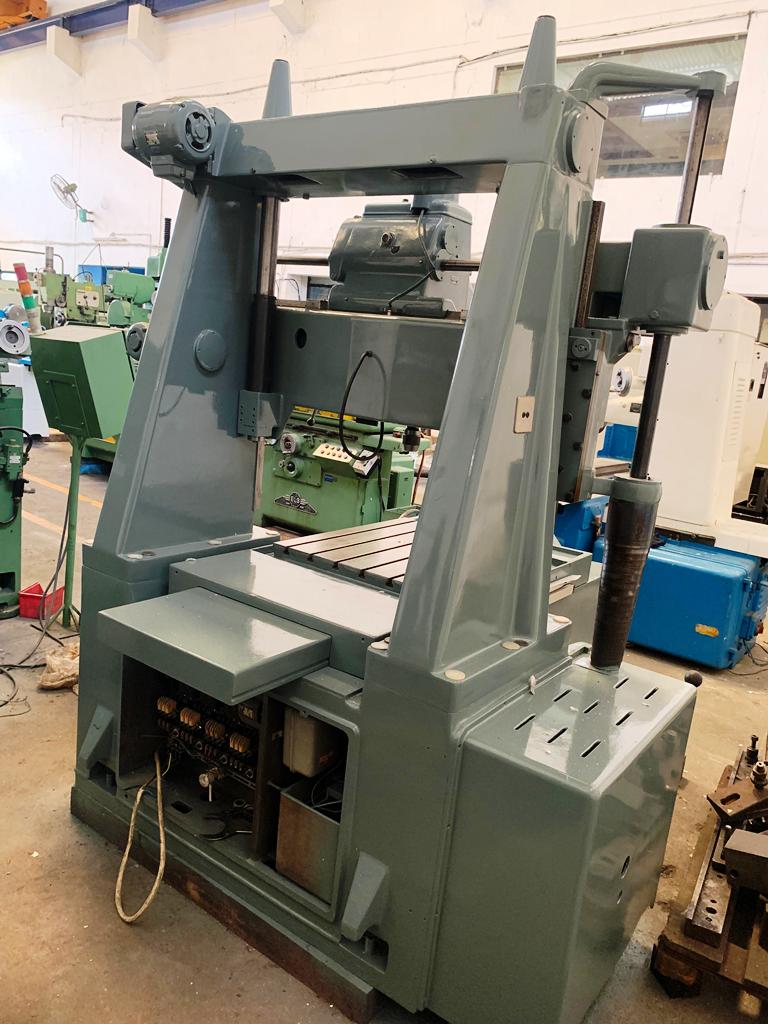

• 2 columns execution
• Travel of the vertical slide: 500 mm
• Passage from grinding motor to table: 500 mm
• Max grinding diameter with display-plate: 300 mm

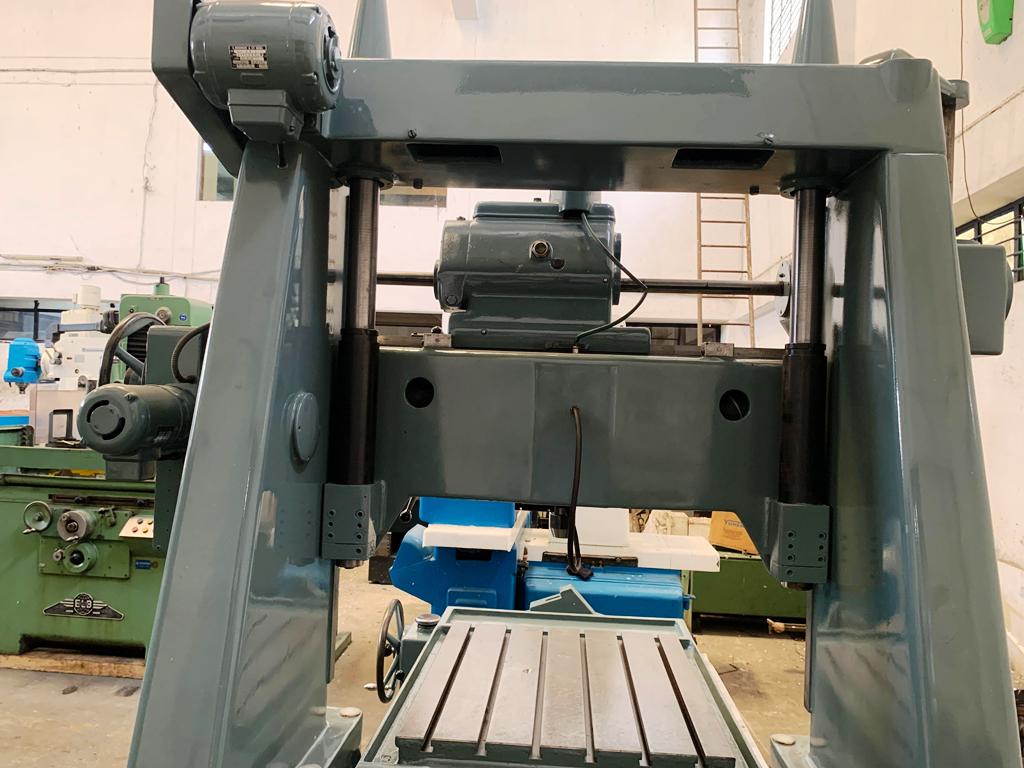

• Passage between the columns: 840 mm
• Max angle with taper grinding: up to 16 degrees
• Vertical travel of grinding spindle, stepless:
• -From 3 mm-Up to 145 mm
• Travel speeds, stepless: up to 2.8 m/min
• Radial fine feed of U-axis: up to 4.5 mm
• Planetary motion speeds of C-axis, stepless:
• -From 10 rpm -Up to 280 rpm
• Possible grinding-spindle speeds, stepless:
• -From 9000 rpm -Up to 80000 rpm
• Voltage: 50 Hz, 3×380 Volt
• Total power required: 6.3 kW
