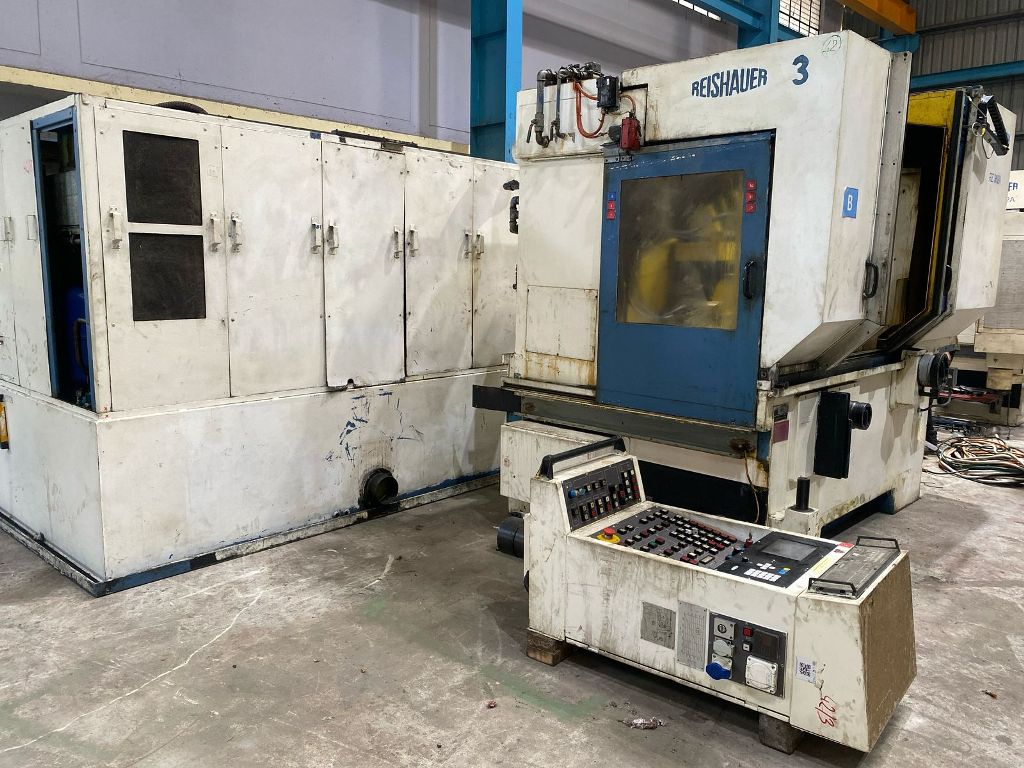

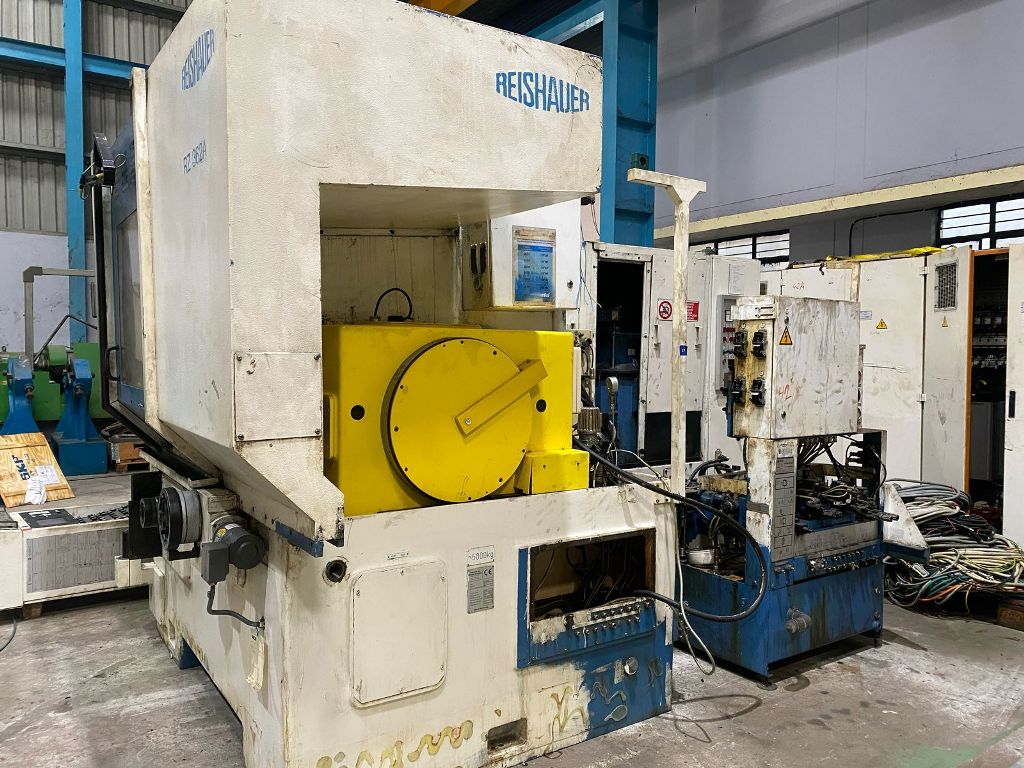

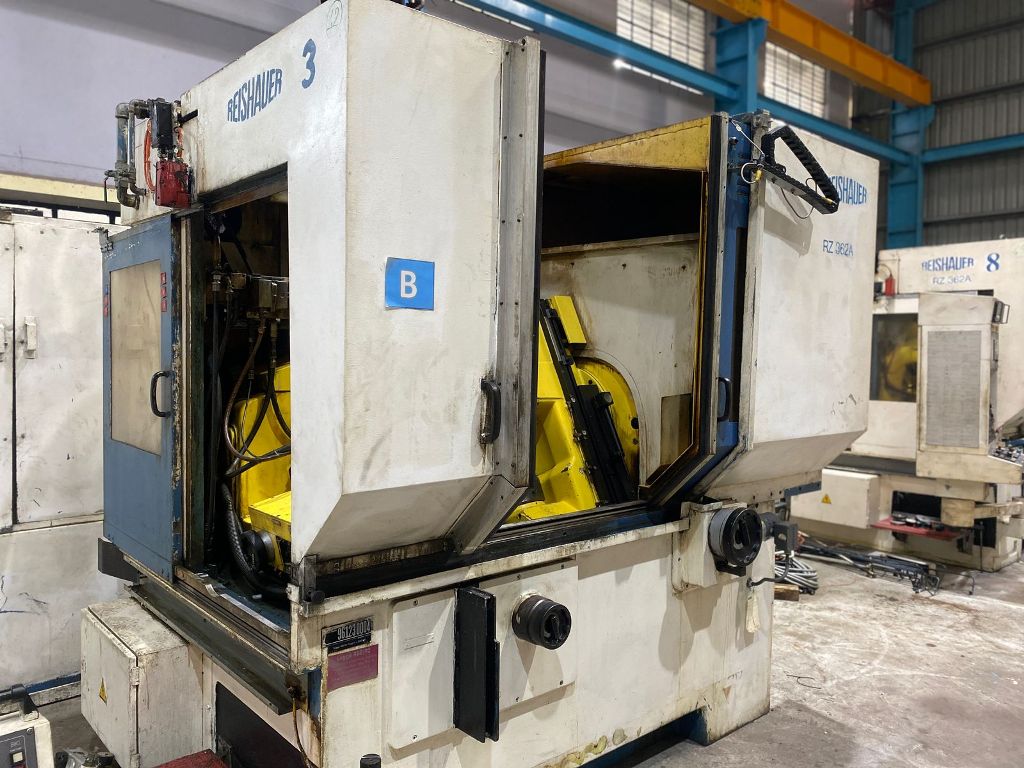

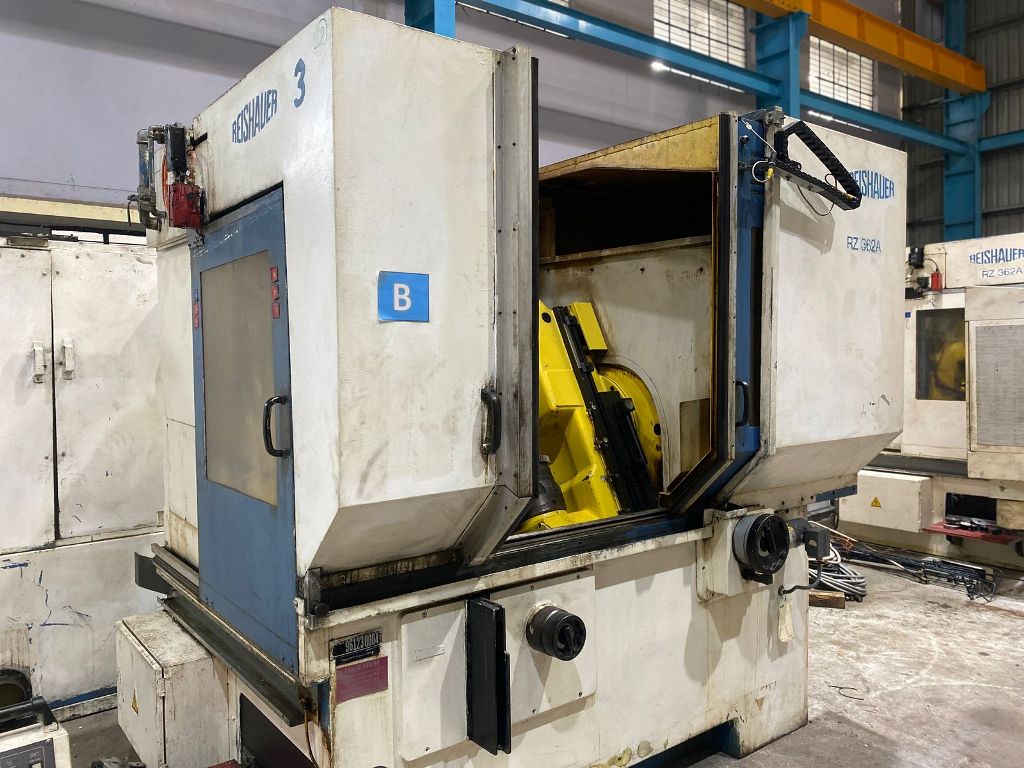

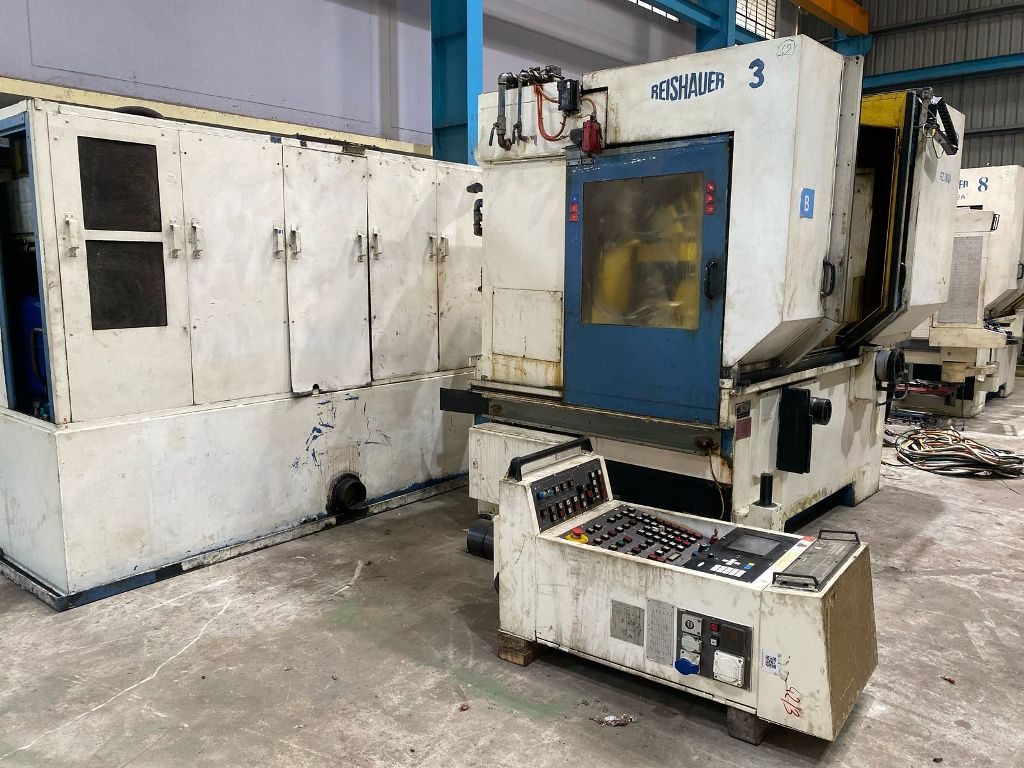

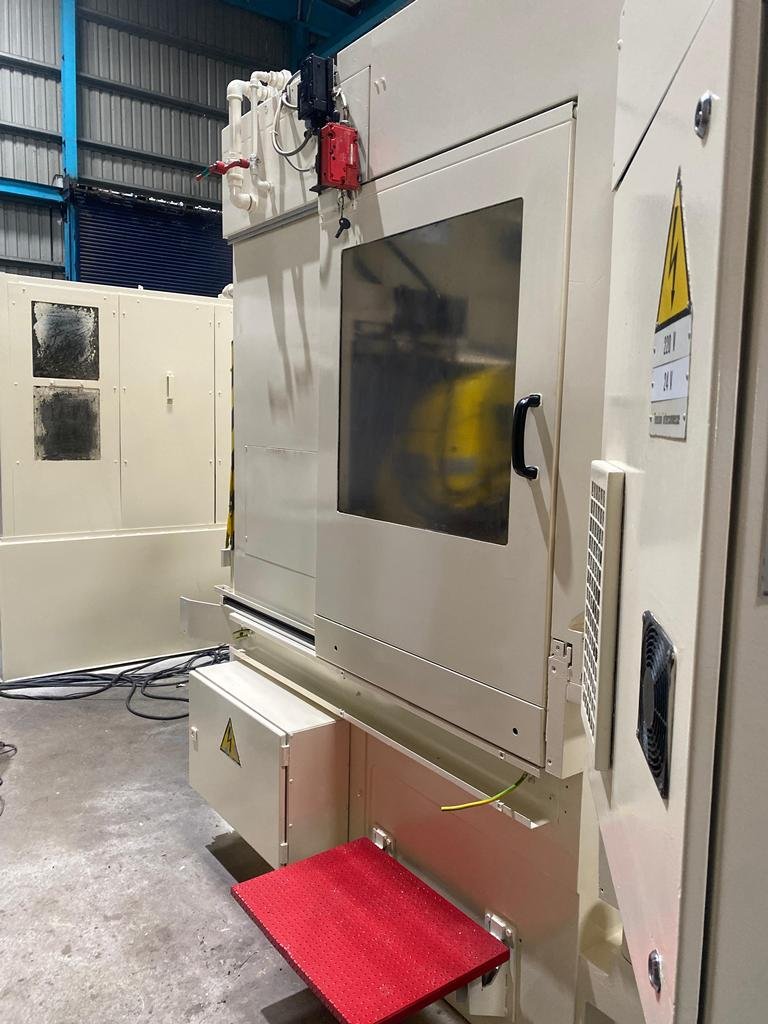

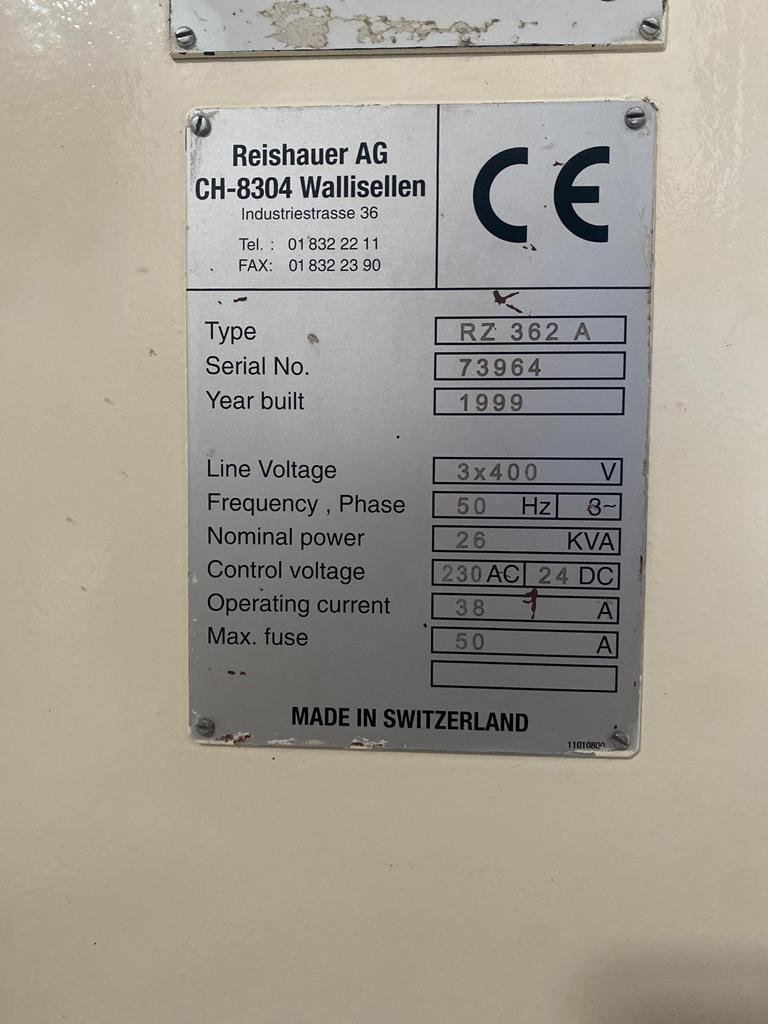

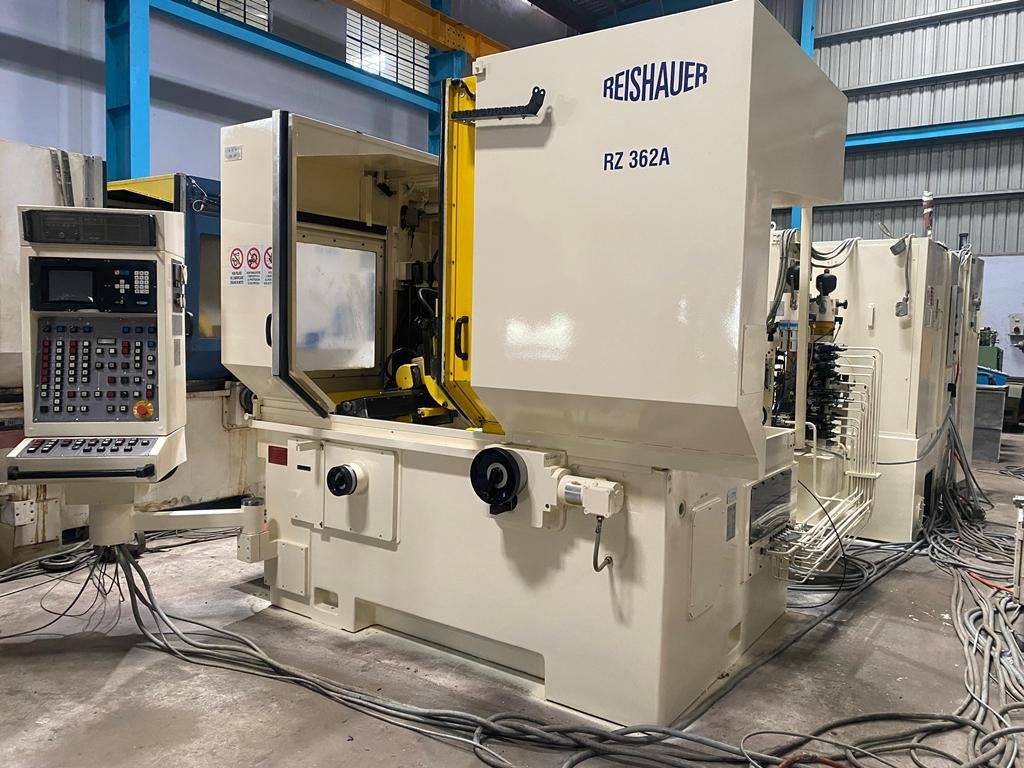

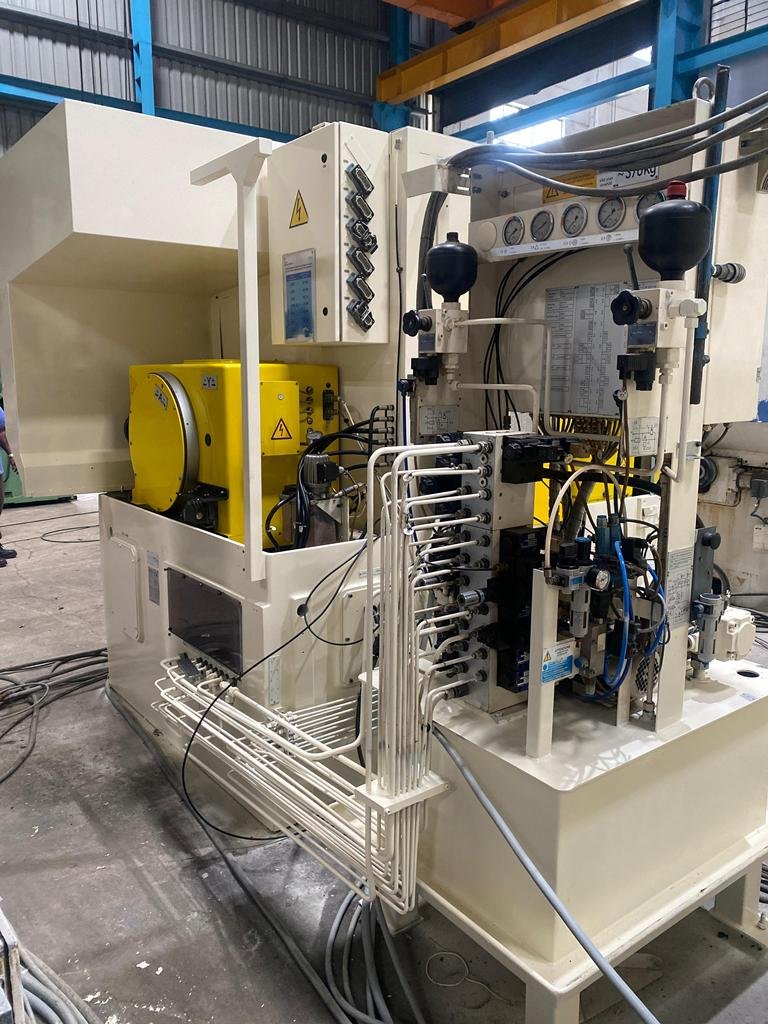

REISHAUER RZ362A Gear Grinding – 3
| Make / Model |
REISHAUER RZ362A |
| Country |
Germany |
| Max.Wheel Diameter |
360 mm |
| Min. Max Module |
0.5 to 7 |
Product ID : UM2024030503
Enquiry
Technical Specification
- Gear Grinding Machine
- Brand – REISHAUER
- Model – RZ 362 A
- Year – 1995
- Maximum Grinding Wheel Diameter – 360 mm
- Max. Workpiece Width – 175 mm
- Max. Module – 7
- Min. Module – 0.5
- Slide Stroke – 175 mm
- Max. Rotation – ± 45°
- Maximum Number of Teeth – 600
- Minimum Number of Teeth – 6
- Maximum Weight of the Piece – 60 kg
- Grinding Wheel Size – B: 104
- Grinding Wheel Speed – 50 – 95 rpm
- Spindle Speed – 1100 – 2300 rpm
- Machine Weight – 6.6 t
- Machine Dimensions – 6.0 x 6.0 x 2.3 m
