Vertical Machining Center Okuma 650 x 410 x 450mm

Technical Specification

• Make –  Okuma
• Model: MC-4-VA

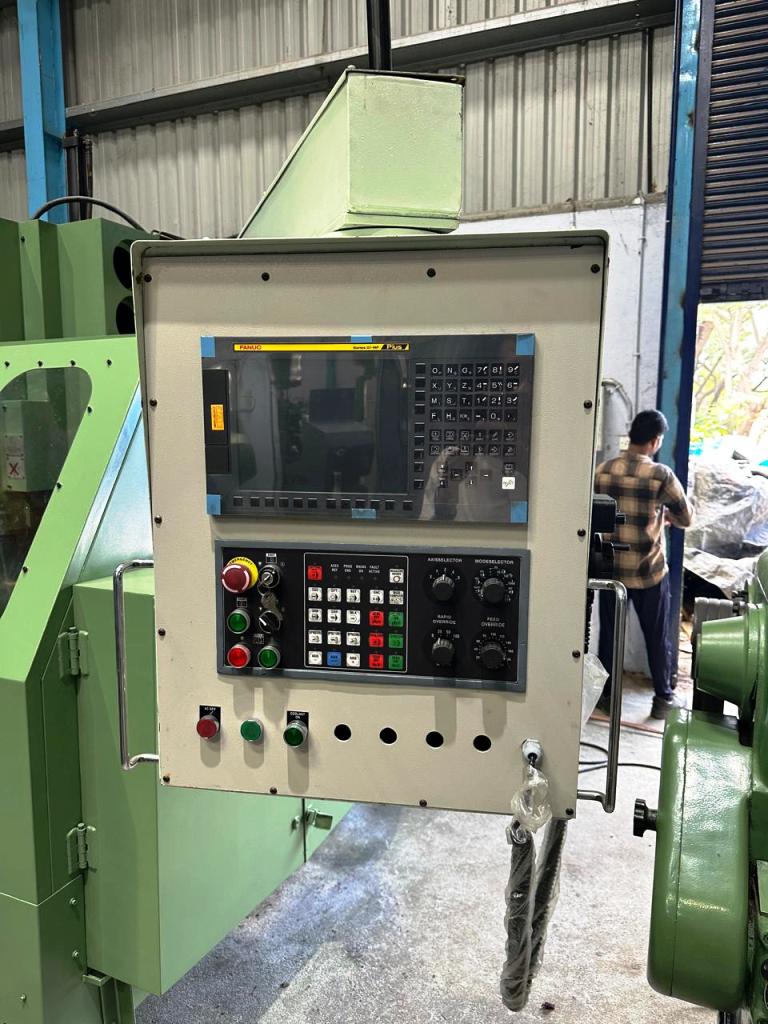

• CNC Controller: Fanuc Oi
• Condition: Excellent (Refurbished in 2024)
• Table Dimensions: 1000 x 510 mm
• Maximum Weight on Table: 500 kg
• Maximum Weight on Table at Ground Level: 750 kg
• Longitudinal Travel (X axis): 650 mm
• Cross Travel (Y axis): 410 mm
• Vertical Travel (Z axis): 450 mm
• Distance from End of Spindle to Table: 200 mm
• Center to Column Axis Distance: 460 mm
• Coolant Supply: Through the spindle
• Internal Taper of Spindle: NT-40
• Spindle Speed Range: 60 to 6000 RPM (infinitely variable speed)
• Advance Speed: 1 to 4000 mm/min

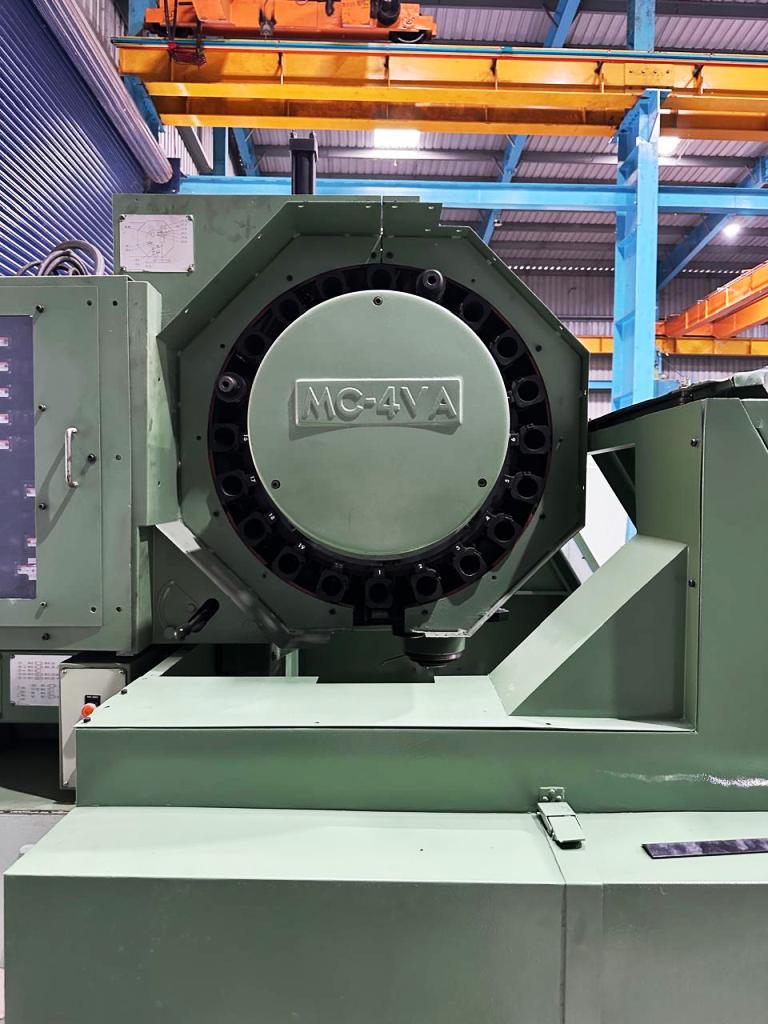

• Tool Magazine Capacity: 20 units
• Tool Selection: Memory Random
• Tool Holder: MAS-BT50
